male D-Sub 37pin hq for PCB, angled 13.84mm

Symbol Micros: Z DK37W13

32753

Z DK37W13

Contractor Symbol:

Case : Rys.DRB37LP

Datasheet

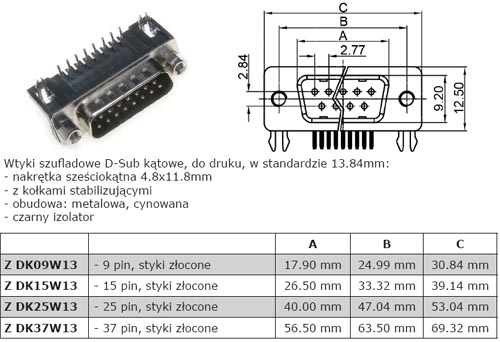

Technical drawing Add to favourites

fix screws 4.8x11.8mm, metal housing nickled, gold plated contacts, black insulator eqiv. DRB37LP

Parameters

Colour:	Black
Number of pins:	37
Manufacturer:	HSM
Type of connector:	Plug
Orientation:	Angled

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	Black
Number of pins:	37
Manufacturer:	HSM
Type of connector:	Plug
Orientation:	Angled
