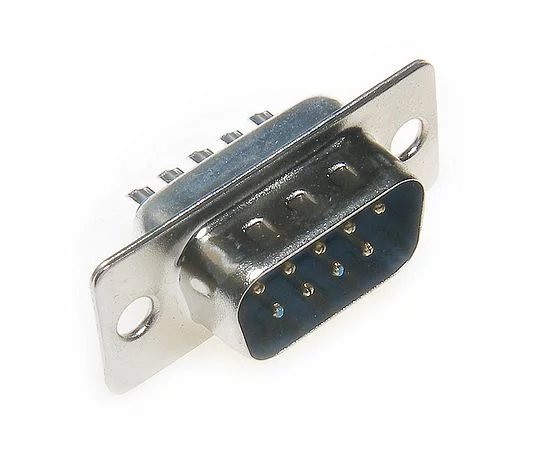

DS1033-09MBNSiSS CONNFLY D-Sub Connector

Symbol Micros: Z DL09W-C

21758

Z DL09W-C

Contractor Symbol:

Case : Rys.DS09P

Datasheet

Technical drawing Add to favourites

male; 9pin; solder terminal; solder terminals,through hole, w/o rivets and screws, metal housing tinned, gold plated contacts, black insulator eqiv. DS09P, DSC-009, L717SDE09P

Equivalents

Parameters

Manufacturer:	CONNFLY
Colour:	Black
Number of pins:	9
Type of connector:	Plug
Orientation:	Straight

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1033-09MBNSiSS RoHS Case style: Rys.DS09P Datasheet

In stock:

2006 pcs.

Quantity of pcs.	5+	20+	50+	200+	900+
Net price (EUR)	0,2510	0,1366	0,1034	0,0806	0,0714

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-07-30

Quantity of pcs.: 2600

• Parameters

Manufacturer:	CONNFLY
Colour:	Black
Number of pins:	9
Type of connector:	Plug
Orientation:	Straight

Equivalents

C0540-09MAABSWR HSM D-Sub Connector
