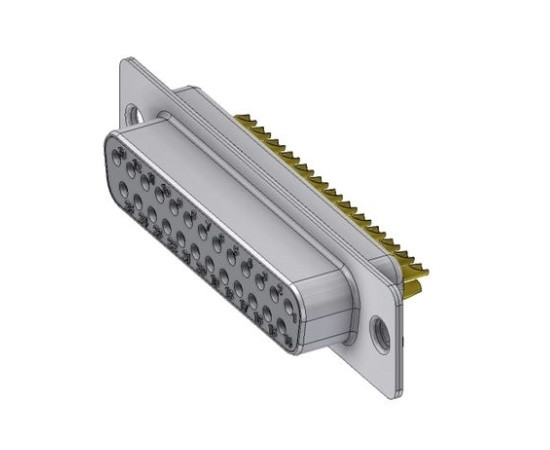

DTS25SZ/2 DELTRON D-Sub Connector

Symbol Micros: Z DL25G-DELTRON

112658

Z DL25G-DELTRON

Contractor Symbol:

Case : Rys.DE002184

Datasheet

Technical drawing Add to favourites

female; 25pin; solder terminals,through hole, w/o rivets and screws, metal housing; copper alloy, white insulator

Parameters

Colour:	White
Manufacturer:	DELTRON
Number of pins:	25
Type of connector:	Socket
Orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Colour:	White
Manufacturer:	DELTRON
Number of pins:	25
Type of connector:	Socket
Orientation:	Straight
