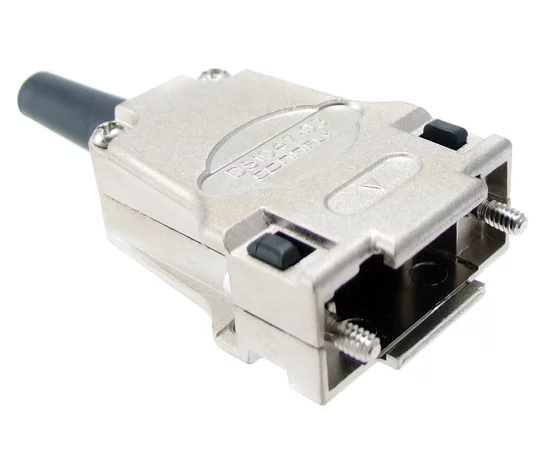

DS1047-03-09M2S CONNFLY Enclosure for D-Sub connectors

Symbol Micros: Z DO09AS

78675

Z DO09AS

Contractor Symbol:

Case : Rys.DP09AS

Datasheet

Technical drawing Add to favourites

straight; screwed; thread: UNC 4-40; snap fastener; shielded; material: metal; mates with: D-sub 9pin or D-sub HD 15pin

Parameters

Manufacturer:	CONNFLY
Colour:	Chromed
Number of pins:	9
Type of connector:	Housing
Orientation:	Straight

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1047-03-09M2S RoHS Case style: Rys.DP09AS

In stock:

24 pcs.

Quantity of pcs.	1+	3+	10+	50+	98+
Net price (EUR)	2,0395	1,6580	1,4389	1,3023	1,2741

Add to comparison tool Add inquiry (RFQ)

Packaging:
98 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1047-03-09M2S RoHS Case style: Rys.DP09AS

In stock:

100 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,0395	1,6603	1,4389	1,3353	1,2741

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Manufacturer:	CONNFLY
Colour:	Chromed
Number of pins:	9
Type of connector:	Housing
Orientation:	Straight
