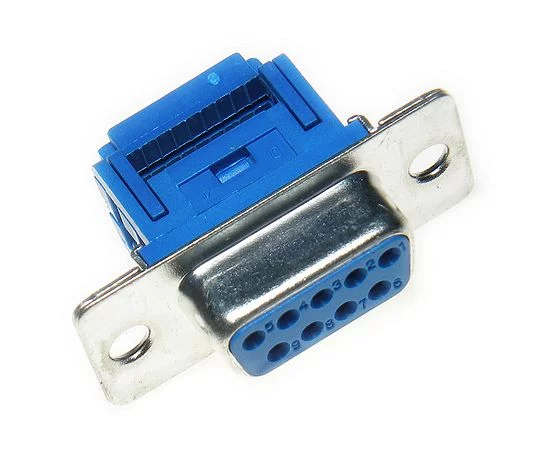

C0580-09FAASL0R HSM D-Sub Connector

Symbol Micros: Z DT09G

12996

Z DT09G

Contractor Symbol:

Case : Rys.DIDC09S

Datasheet

Technical drawing Add to favourites

male; 9pin; blue color,through hole, w/o rivets and screws, plastic housing gold plated contacts, blue insulator eqiv. DIDC09S-2, DFF09LC

Parameters

Colour:	Blue
Number of pins:	9
Manufacturer:	HSM
Type of connector:	Socket
Orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number: C0580-09FAASLOR RoHS Case style: Rys.DIDC09S

In stock:

129 pcs.

Quantity of pcs.	1+	5+	20+	90+	270+
Net price (EUR)	1,5904	1,1799	1,0298	0,9594	0,9359

Add to comparison tool Add inquiry (RFQ)

Packaging:
90/450 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-10-15

Quantity of pcs.: 1800

• Parameters

Colour:	Blue
Number of pins:	9
Manufacturer:	HSM
Type of connector:	Socket
Orientation:	Straight
