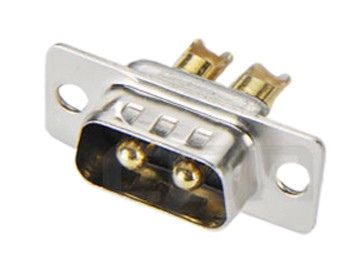

male D-Sub high current 2W2 30A

Symbol Micros: Z DWW02w2

47255

Z DWW02w2

Contractor Symbol:

Case : Rys.DWW02w2

Datasheet

Technical drawing Add to favourites

solder, straight, through hole, metal housing, nickled gold plated contacts, black insulator, w/o screws

Parameters

Type of pin configuration:	2W2
Connector:	Plug
Type of connector:	Male
Current:	30A
Mounting:	For soldering
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1033-05MBN83 RoHS Case style: Rys.DWW02w2

In stock:

26 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,3871	1,9928	1,7637	1,6551	1,5914

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2W2
Connector:	Plug
Type of connector:	Male
Current:	30A
Mounting:	For soldering
Spatial orientation:	Straight
