ESQT-105-02-GF-D-750 Board to board Connector Samtec

Symbol Micros: Z ESQT-105-02-GF-D-750

503418

Z ESQT-105-02-GF-D-750

Contractor Symbol:

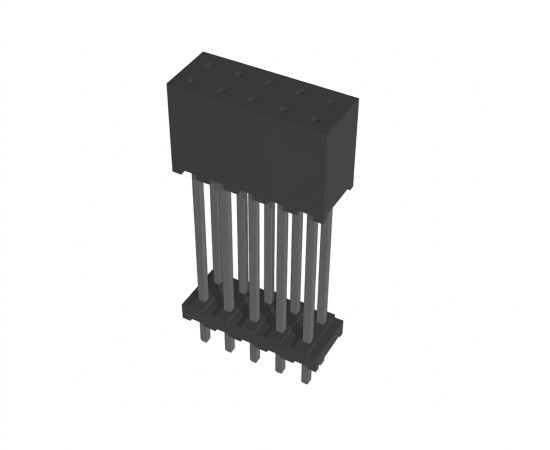

Case : Rys.ESQT-105-02-GF-D-750

Datasheet

Add to favourites

10pin; pitch: 2.00mm; 2 rows; insulation: black; push-pull operatnig temperature: -55C - 125C

Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,0mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x5
Number of pins:	10
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,0mm
