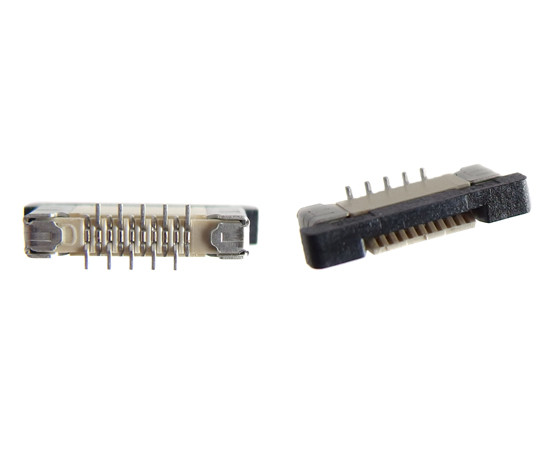

Connector ZIF FFC / FPC 0.5mm - 10pin

Symbol Micros: Z FFA10v

25040

Z FFA10v

Contractor Symbol:

Case : Rys.FFA10v

Datasheet

Technical drawing Add to favourites

50V max.; 0.5A max; straight, SMD, vertical type, normal layout

Parameters

Number of pins:	10
Spatial orientation:	Straight
Type of connection:	Normal layout
Mounting:	SMD
Terminal pitch [mm]:	0,5mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1020-08-10VBT11-R RoHS Case style: Rys.FFA10v

In stock:

240 pcs.

Quantity of pcs.	3+	10+	51+	204+	1000+
Net price (EUR)	0,3029	0,1986	0,1419	0,1243	0,1166

Add to comparison tool Add inquiry (RFQ)

Packaging:
51/1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1020-08-10VBT11-R RoHS Case style: Rys.FFA10v

In stock:

1294 pcs.

Quantity of pcs.	3+	10+	50+	300+	1500+
Net price (EUR)	0,3029	0,1992	0,1430	0,1225	0,1166

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	10
Spatial orientation:	Straight
Type of connection:	Normal layout
Mounting:	SMD
Terminal pitch [mm]:	0,5mm
