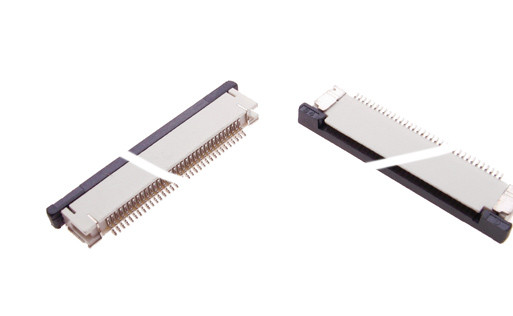

Connector ZIF FFC / FPC 0.5mm - 12pin

Symbol Micros: Z FFA12b

24995

Z FFA12b

Contractor Symbol:

Case : Rys.FFA12b

Datasheet

Add to favourites

50V max.; 0.5A max; angled, SMD, bottom conact

Parameters

Number of pins:	12
Spatial orientation:	Angled
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1020-09-12VBT1A-R RoHS Case style: Rys.FFA12b Datasheet

In stock:

0 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5039	0,3056	0,2356	0,2118	0,2016

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-08-01

Quantity of pcs.: 1000

• Parameters

Number of pins:	12
Spatial orientation:	Angled
Type of connection:	Bottom contact
Mounting:	SMD
Terminal pitch [m]:	0,5mm
