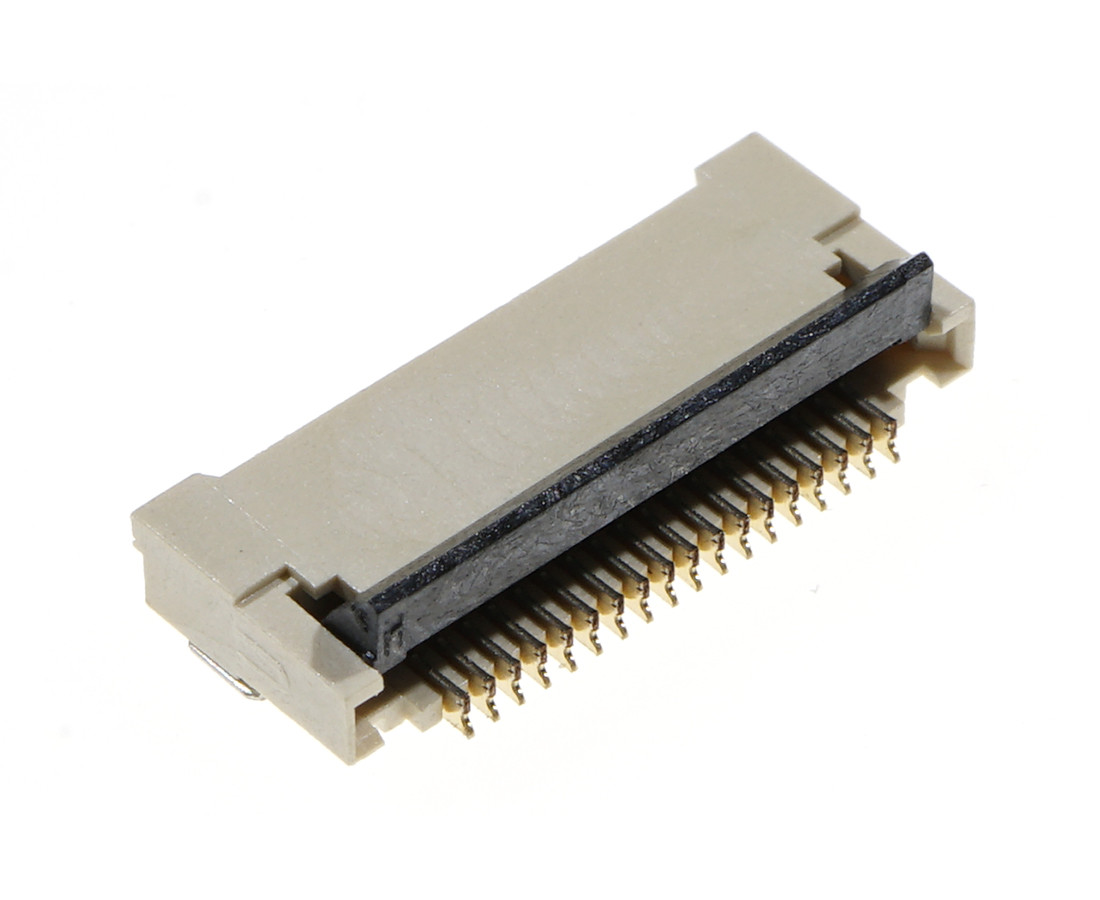

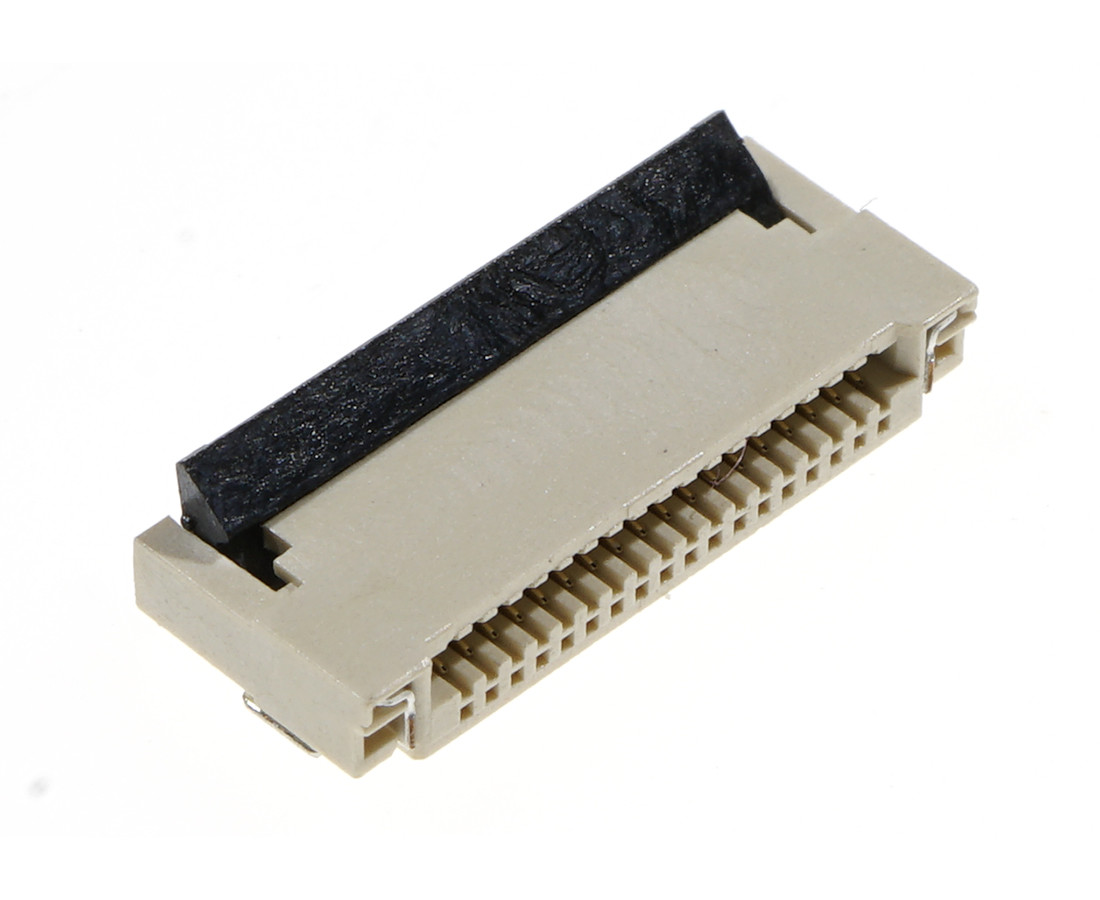

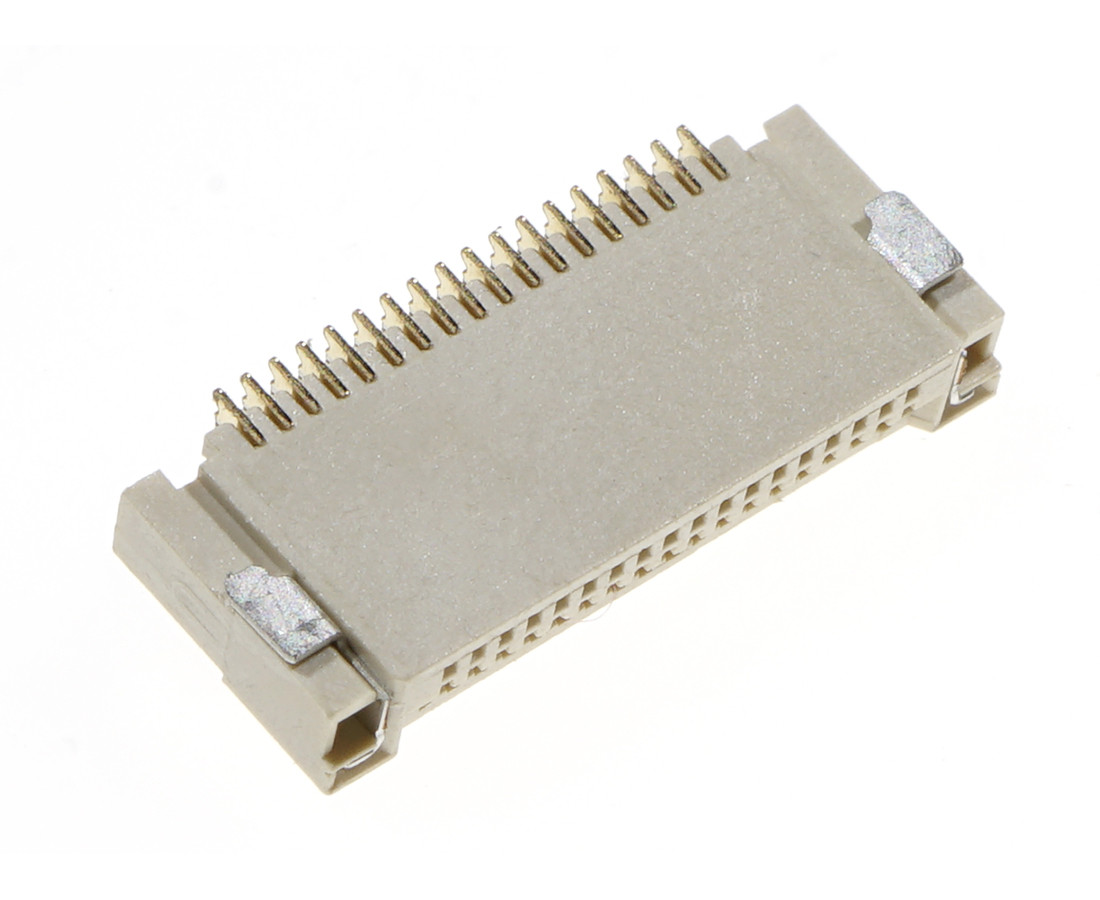

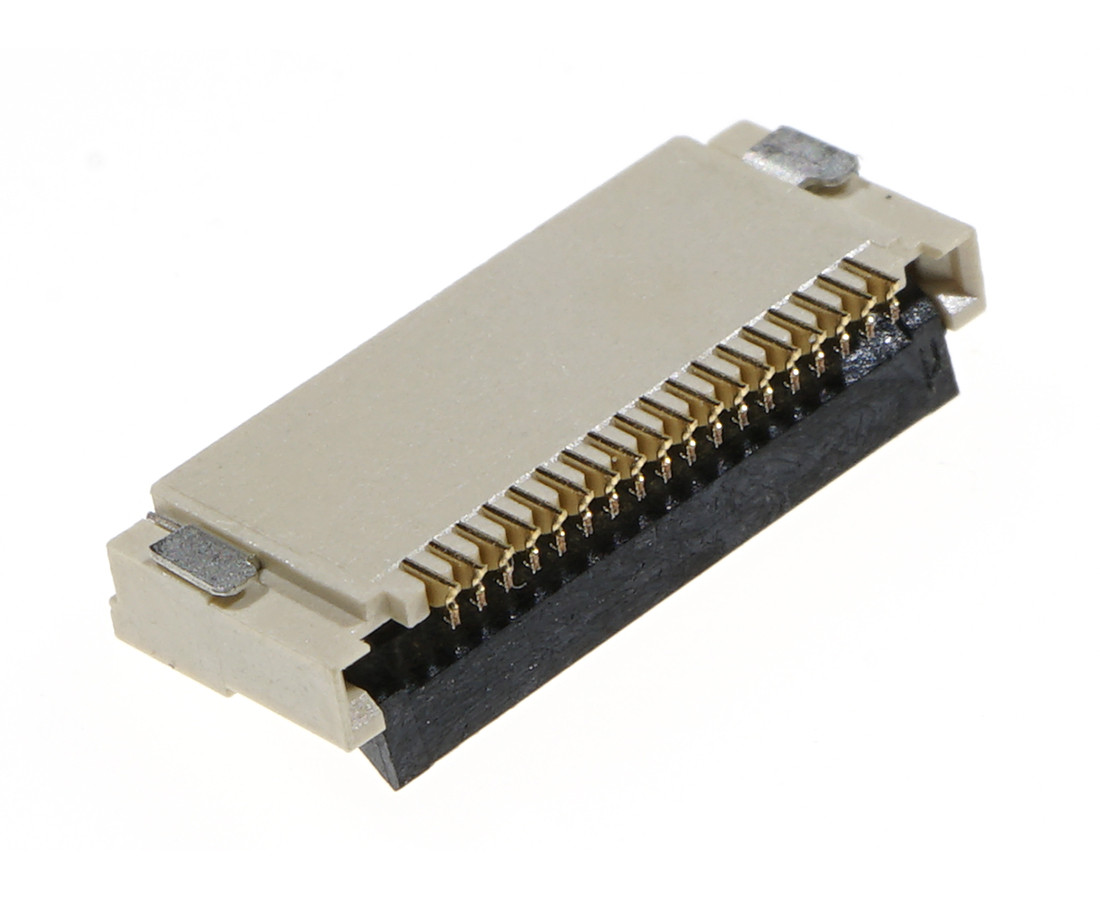

Connector ZIF FFC / FPC 0.5mm - 18pin

Symbol Micros: Z FFA18e

379580

Z FFA18e

Contractor Symbol:

Case : Rys.FFA18e

Datasheet

Technical drawing Add to favourites

50V max.; horizontal, SMD, Easy-one H=2.0mm

Parameters

Number of pins:	18
Spatial orientation:	Horizontal
Type of connection:	Bilateral contact
Mounting:	SMD
Terminal pitch:	0,5mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: JS-1120-WE-0018 RoHS Case style: Rys.FFA18e

In stock:

1497 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,5053	0,3070	0,2357	0,2127	0,2024

Add to comparison tool Add inquiry (RFQ)

Packaging:
1500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	18
Spatial orientation:	Horizontal
Type of connection:	Bilateral contact
Mounting:	SMD
Terminal pitch:	0,5mm
