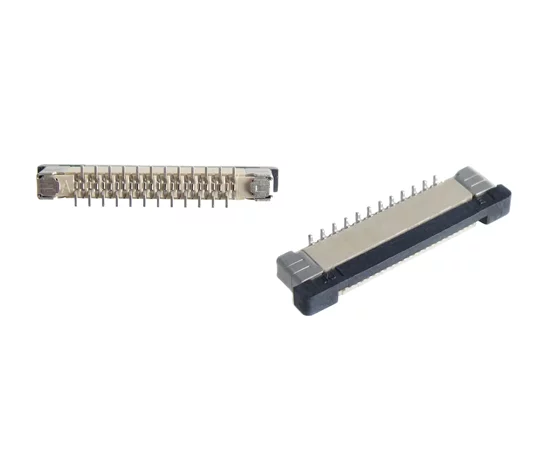

Connector ZIF FFC / FPC 0.5mm - 24pin

Symbol Micros: Z FFA24v

25054

Z FFA24v

Contractor Symbol:

Case : Rys.FFA24v

Datasheet

Technical drawing Add to favourites

50V max.; 0.5A max; straight, SMD, vertical type, normal layout

Parameters

Number of pins:	24
Spatial orientation:	Straight
Type of connection:	Normal layout
Mounting:	SMD
Terminal pitch [mm]:	0,5mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-08-24VBT11RoHS Case style: Rys.FFA24v

In stock:

20 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3541	0,1946	0,1531	0,1419	0,1359

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-08-24VBT11RoHS Case style: Rys.FFA24v

In stock:

907 pcs.

Quantity of pcs.	3+	10+	32+	128+	480+
Net price (EUR)	0,3541	0,2307	0,1752	0,1469	0,1359

Add to comparison tool Add inquiry (RFQ)

Packaging:
32 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	24
Spatial orientation:	Straight
Type of connection:	Normal layout
Mounting:	SMD
Terminal pitch [mm]:	0,5mm
