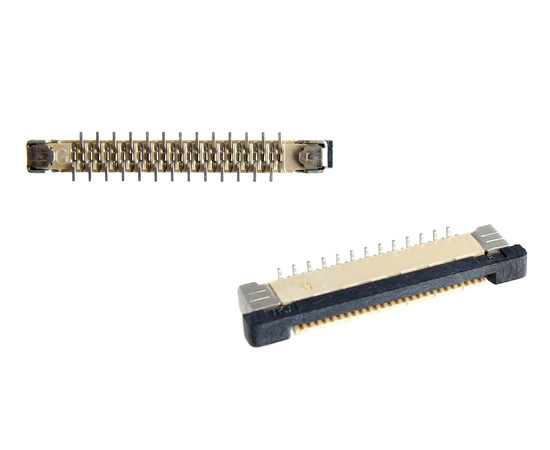

Connector ZIF FFC / FPC 0.5mm - 26pin

Symbol Micros: Z FFA26v

25056

Z FFA26v

Contractor Symbol:

Case : Rys.FFA26v

Datasheet

Add to favourites

50V max.; 0.5A max; straight, SMD, vertical type, normal layout

Parameters

Number of pins:	26
Spatial orientation:	Straight
Type of connection:	Normal layout
Mounting:	SMD
Terminal pitch [mm]:	0,5mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-08-26VBT11RoHS Case style: Rys.FFA26v

In stock:

971 pcs.

Quantity of pcs.	3+	10+	30+	180+	1000+
Net price (EUR)	0,3815	0,2513	0,1946	0,1581	0,1471

Add to comparison tool Add inquiry (RFQ)

Packaging:
30/1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	26
Spatial orientation:	Straight
Type of connection:	Normal layout
Mounting:	SMD
Terminal pitch [mm]:	0,5mm
