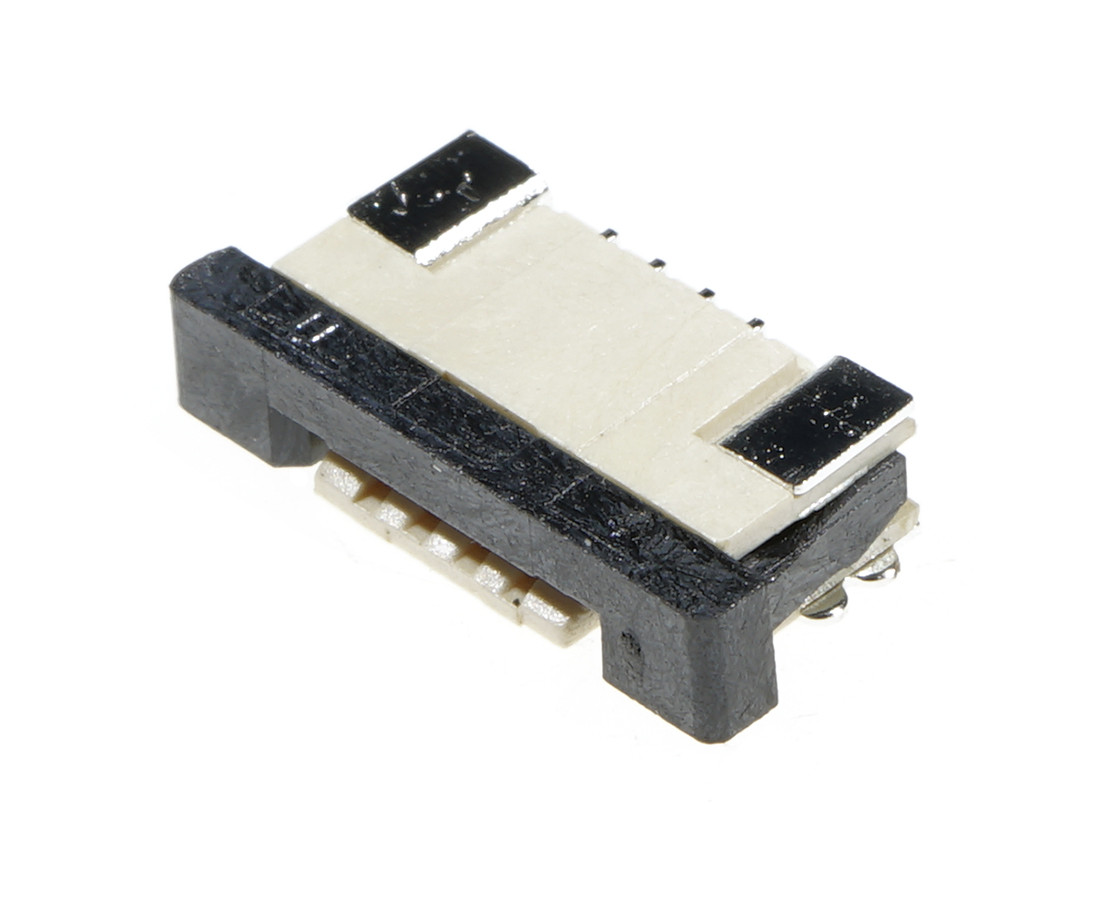

DS1020-07-04VBT1A CONNFLY FFC connector

Symbol Micros: Z FFCs04b

25254

Z FFCs04b

Contractor Symbol:

Case : Rys.FFCs04b

Datasheet

Add to favourites

4pin, angled, SMD, bottom contact

Parameters

Number of pins:	4
Type of connection:	Bottom contact
Spatial orientation:	Angled
Mounting:	SMD
Terminal pitch [mm]:	1,0mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-07-04VBT1A RoHS Case style: Rys.FFCs04b

In stock:

1211 pcs.

Quantity of pcs.	3+	10+	52+	260+	1500+
Net price (EUR)	0,3092	0,1974	0,1381	0,1189	0,1122

Add to comparison tool Add inquiry (RFQ)

Packaging:
52/1500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Type of connection:	Bottom contact
Spatial orientation:	Angled
Mounting:	SMD
Terminal pitch [mm]:	1,0mm
