Z FFCs12b - 12pin

Symbol Micros: Z FFCs12b

25262

Z FFCs12b

Contractor Symbol:

Case : Rys.FFCs12b

Datasheet

Technical drawing Technical drawing Add to favourites

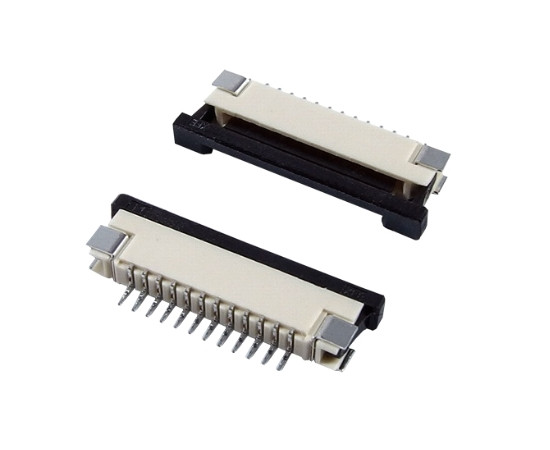

Connector: FFC (FPC), angled, SMD, bottom contact

Parameters

Number of pins:	12
Type of connection:	Bottom contact
Spatial orientation:	Angled
Mounting:	SMD
Terminal pitch [mm]:	1,0mm

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: FCZGSHD1-12 RoHS Case style: Rys.FFCs12b

In stock:

80 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,4375	0,2428	0,1910	0,1734	0,1679

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	12
Type of connection:	Bottom contact
Spatial orientation:	Angled
Mounting:	SMD
Terminal pitch [mm]:	1,0mm
