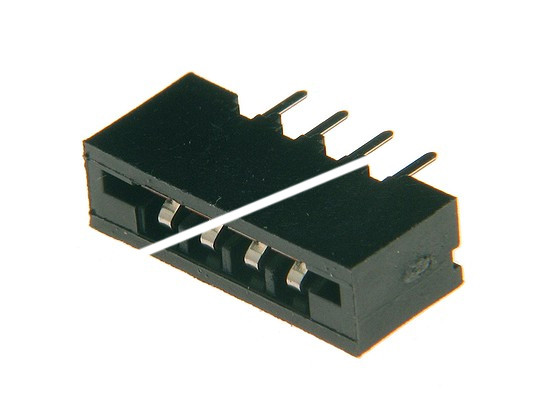

DS1020-03ST1D CONNFLY FFC Connector

Symbol Micros: Z FNE03s

26444

Z FNE03s

Contractor Symbol:

Case : Rys.FNE03s

Datasheet

Technical drawing Technical drawing Add to favourites

straight, PCB type eqiv. NZIF-FB-03S

Parameters

Number of pins:	3
Spatial orientation:	Straight
Connector:	Socket
Mounting:	PCB
Terminal pitch:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-03ST1D RoHS Case style: Rys.FNE03s

In stock:

80 pcs.

Quantity of pcs.	5+	20+	80+	400+	2000+
Net price (EUR)	0,1135	0,0518	0,0300	0,0215	0,0189

Add to comparison tool Add inquiry (RFQ)

Packaging:
80 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-03ST1D RoHS Case style: Rys.FNE03s

In stock:

815 pcs.

Quantity of pcs.	5+	20+	80+	400+	2000+
Net price (EUR)	0,1135	0,0518	0,0300	0,0215	0,0189

Add to comparison tool Add inquiry (RFQ)

Packaging:
92/920 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1020-03ST1D Case style: Rys.FNE03s

External warehouse:

2908 pcs.

Quantity of pcs.	92+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0189

Add to comparison tool Add inquiry (RFQ)

Packaging:
92

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	3
Spatial orientation:	Straight
Connector:	Socket
Mounting:	PCB
Terminal pitch:	2,54mm
