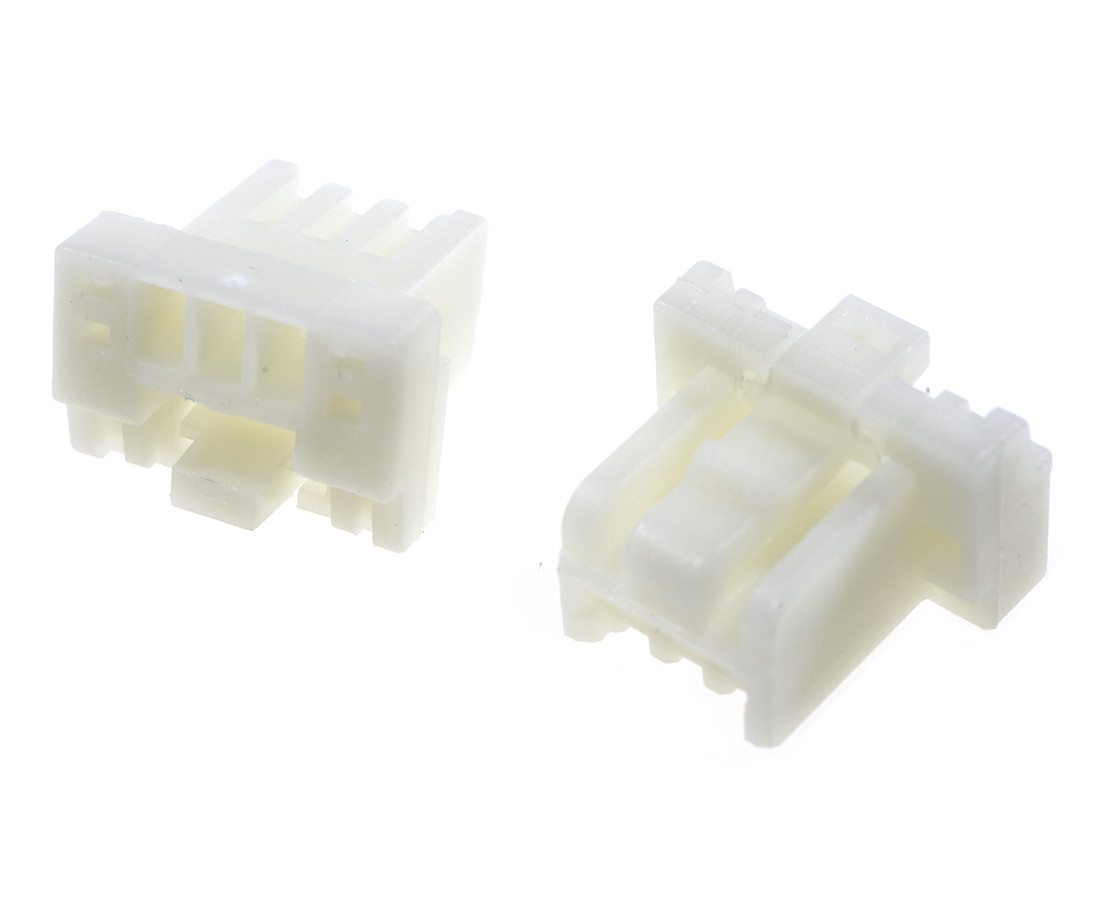

JVT1503HN0-03L JVT Cable connector

Symbol Micros: Z K1503F-03p

337292

Z K1503F-03p

Contractor Symbol:

Case : Rys.K1503F-03p

Datasheet

Technical drawing Add to favourites

plug; female; 3pin; 100V; 2A; pitch: 1.5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0; eqiv. 502578-0300

Parameters

Number of pins:	3
Spatial orientation:	Straight
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	100V
Connector:	Plug
Current:	2A

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503HN0-03L RoHS Case style: Rys.K1503F-03p Datasheet

In stock:

1998 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1506	0,0713	0,0397	0,0302	0,0274

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	3
Spatial orientation:	Straight
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	100V
Connector:	Plug
Current:	2A
Type of connector:	Female
Terminal pitch [m]:	1,5mm
