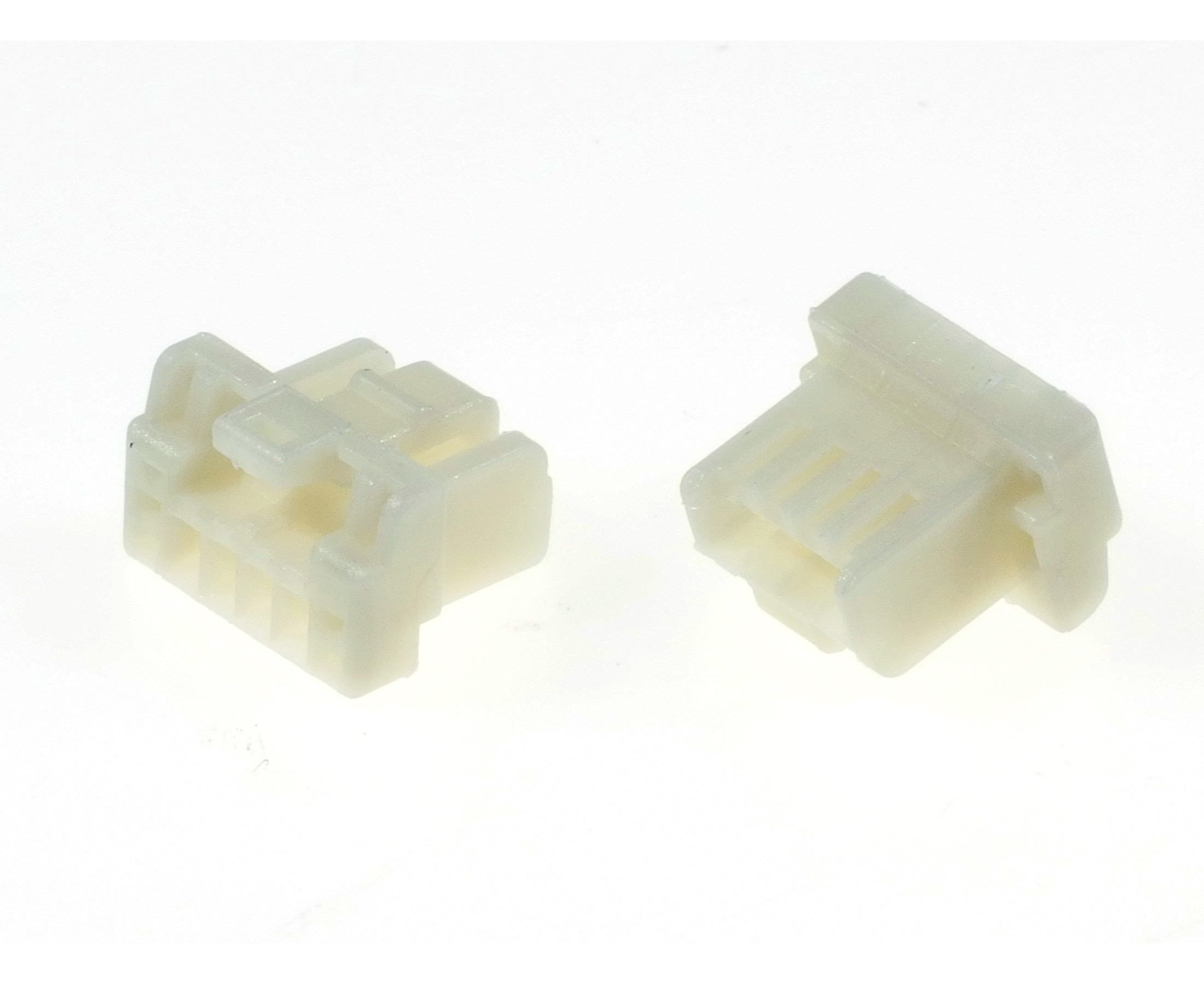

JVT1503HPT-04L JVT Cable connector

Symbol Micros: Z K1503F-04p

337293

Z K1503F-04p

Contractor Symbol:

Case : Rys.K1503F-04p

Datasheet

Technical drawing Add to favourites

plug; female; 4pin; 100V; 2A; pitch: 1.5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0; eqiv. 502578-0400

Parameters

Number of pins:	4
Spatial orientation:	Straight
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	100V
Connector:	Plug
Current:	2A

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503HPT-04L RoHS Case style: Rys.K1503F-04p Datasheet

In stock:

1998 pcs.

Quantity of pcs.	5+	30+	200+	1000+	2000+
Net price (EUR)	0,1723	0,0683	0,0393	0,0325	0,0313

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Spatial orientation:	Straight
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	100V
Connector:	Plug
Current:	2A
Type of connector:	Female
Terminal pitch [m]:	1,5mm
