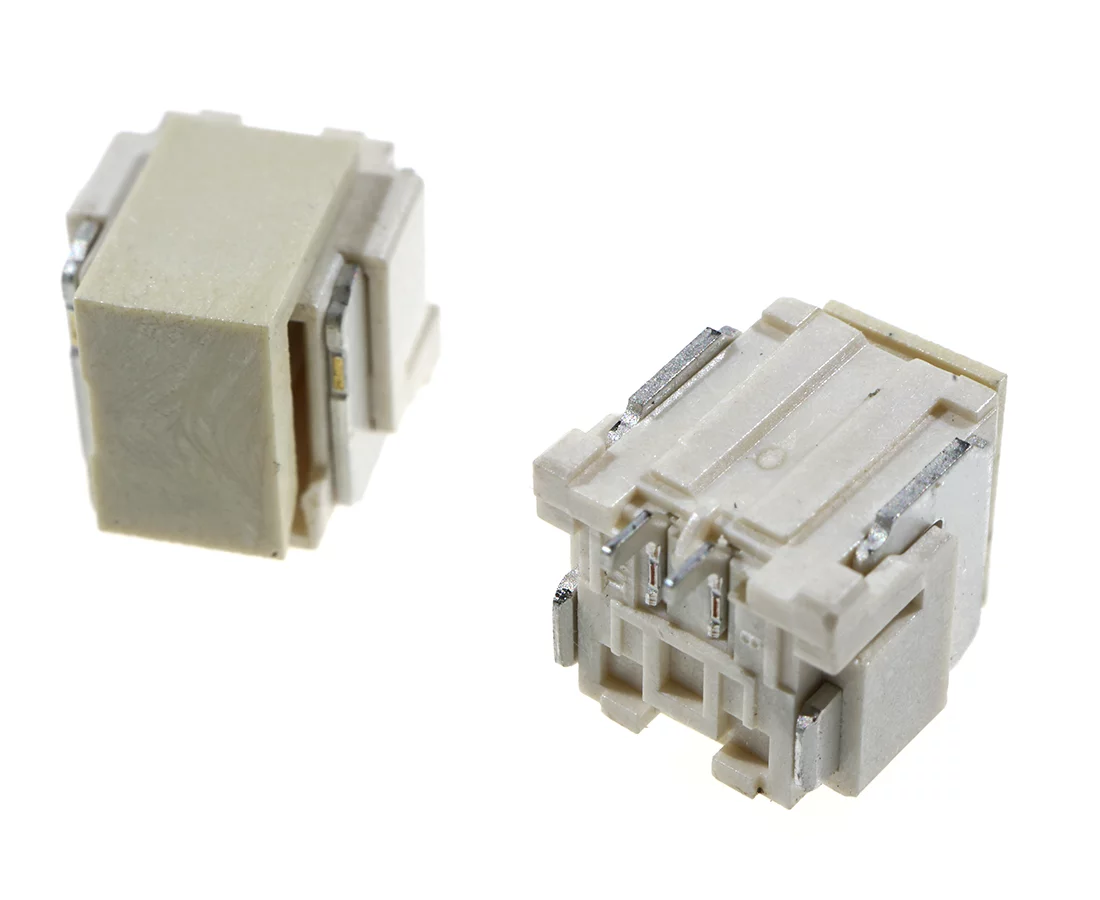

JVT1503WLP-02SNR-S JVT Cable connector

Symbol Micros: Z K1503M-02k

337303

Z K1503M-02k

Contractor Symbol:

Case : Rys.K1503M-02k

Datasheet

Technical drawing Add to favourites

socket; male; horizontal; 2pin; 100V; 1A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0;

Parameters

Number of pins:	2
Spatial orientation:	Horizontal
Manufacturer:	JVT
Mounting:	SMD
Operating voltage:	100V
Connector:	Socket
Current:	2A

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503WLP-02SNR-S Case style: Rys.K1503M-02k Datasheet

In stock:

998 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3197	0,1709	0,1331	0,1204	0,1164

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	2
Spatial orientation:	Horizontal
Manufacturer:	JVT
Mounting:	SMD
Operating voltage:	100V
Connector:	Socket
Current:	2A
Type of connector:	Male
Terminal pitch [m]:	1,5mm
