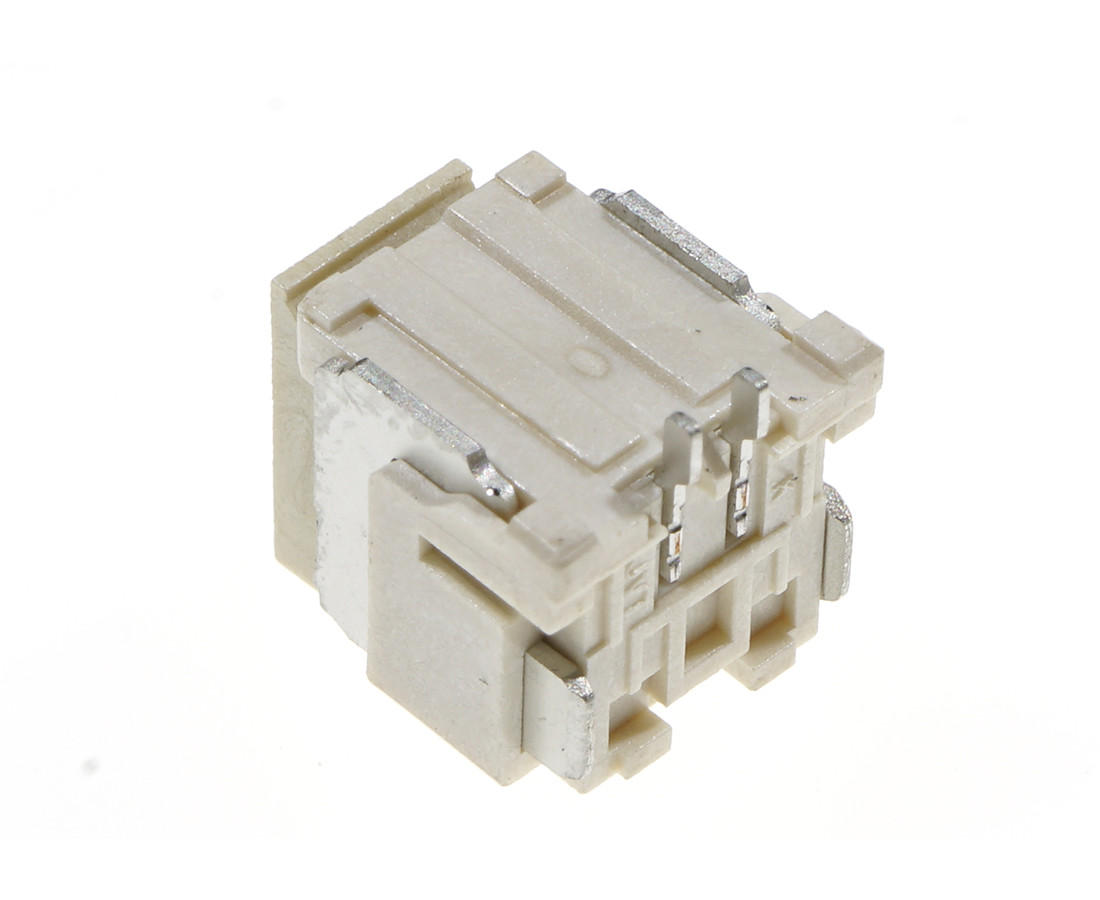

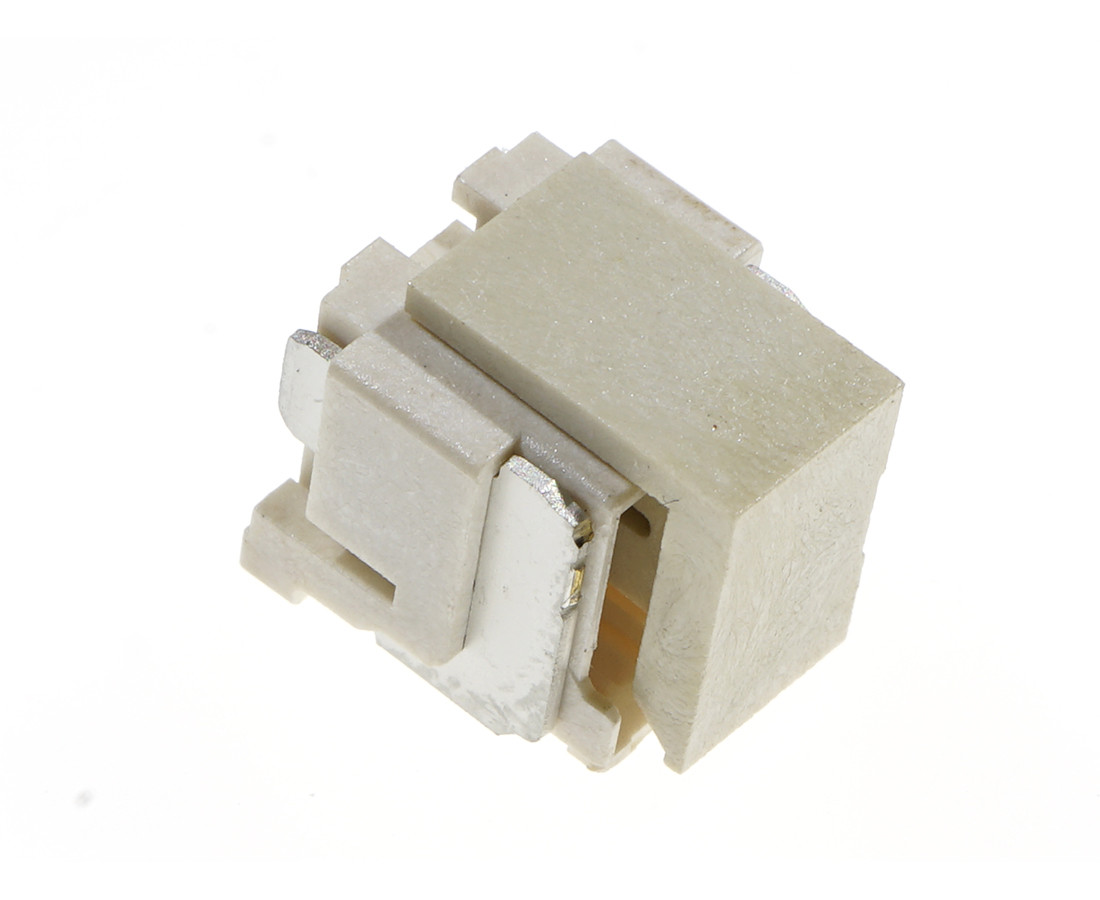

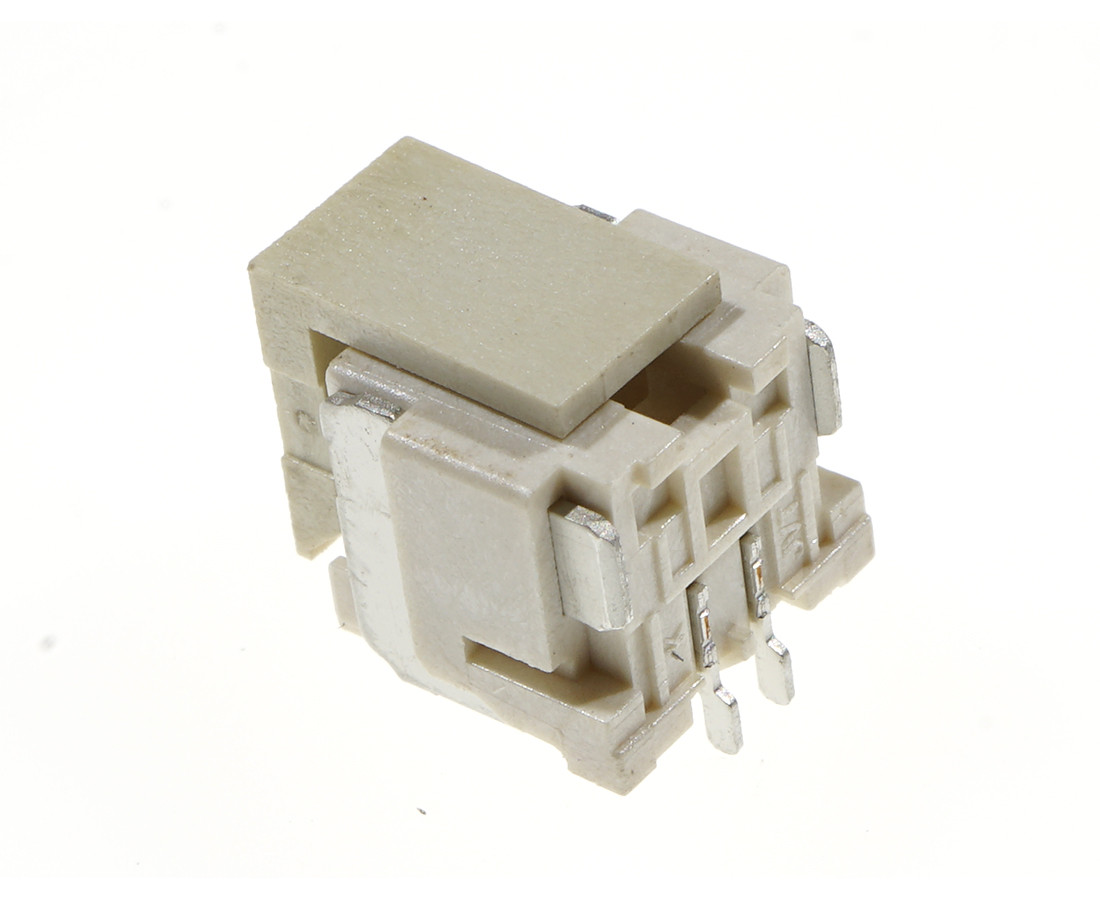

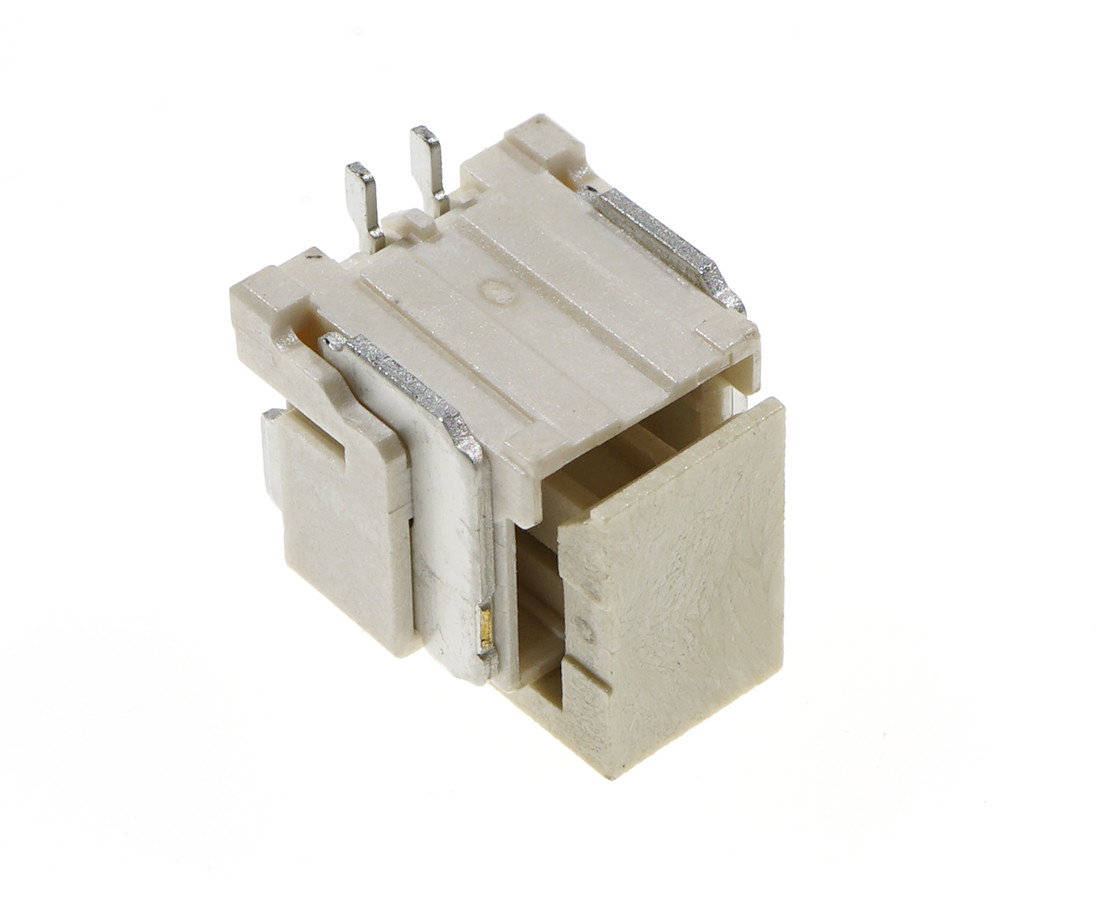

JVT1503WLP-02SN-S JVT Cable connector

Symbol Micros: Z K1503M-02p

337298

Z K1503M-02p

Contractor Symbol:

Case : Rys.K1503M-02p

Datasheet

Technical drawing Add to favourites

socket; male; vertical; 2pin; 100V; 1A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0;

Parameters

Number of pins:	2
Spatial orientation:	Vertical
Operating voltage:	100V
Mounting:	SMD
Connector:	Socket
Current:	2A
Manufacturer:	JVT

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503WLP-02SN-S RoHS Case style: Rys.K1503M-02p Datasheet

In stock:

999 pcs.

Quantity of pcs.	3+	20+	100+	500+	1000+
Net price (EUR)	0,3005	0,1657	0,1302	0,1179	0,1157

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	2
Spatial orientation:	Vertical
Operating voltage:	100V
Mounting:	SMD
Connector:	Socket
Current:	2A
Manufacturer:	JVT
Type of connector:	Male
Terminal pitch [mm]:	1,5mm
