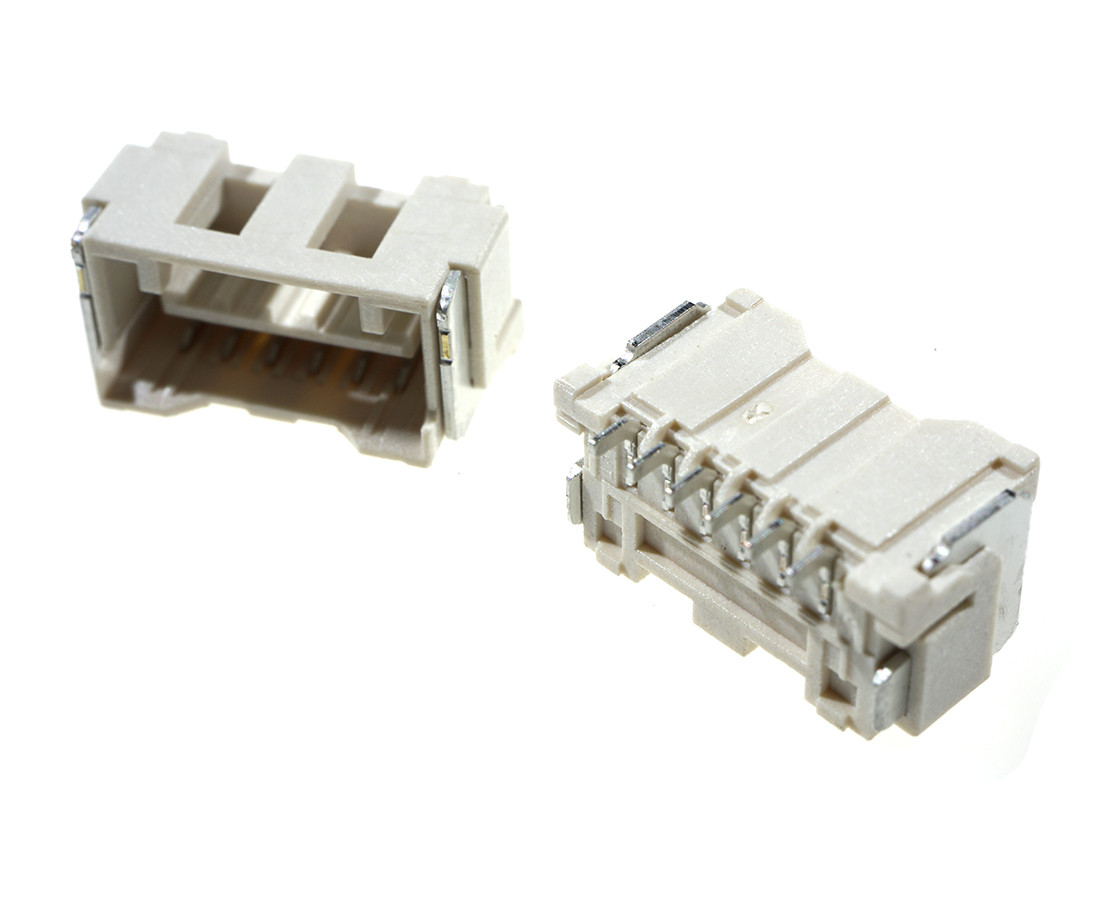

JVT1503WLP-06SNR-S JVT Cable connector

Symbol Micros: Z K1503M-06k

337306

Z K1503M-06k

Contractor Symbol:

Case : Rys.K1503M-06k

Datasheet

Technical drawing Add to favourites

socket; male; horizontal; 6pin; 100V; 1A; pitch: 1,5mm; oper. temp: -25°C~+85°C; material: PBT UL94V-0;

Parameters

Number of pins:	6
Spatial orientation:	Horizontal
Manufacturer:	JVT
Mounting:	SMD
Operating voltage:	100V
Connector:	Socket
Current:	2A

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1503WLP-06SNR-S Case style: Rys.K1503M-06k Datasheet

In stock:

498 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,4373	0,2422	0,1911	0,1735	0,1679

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	6
Spatial orientation:	Horizontal
Manufacturer:	JVT
Mounting:	SMD
Operating voltage:	100V
Connector:	Socket
Current:	2A
Type of connector:	Male
Terminal pitch [m]:	1,5mm
