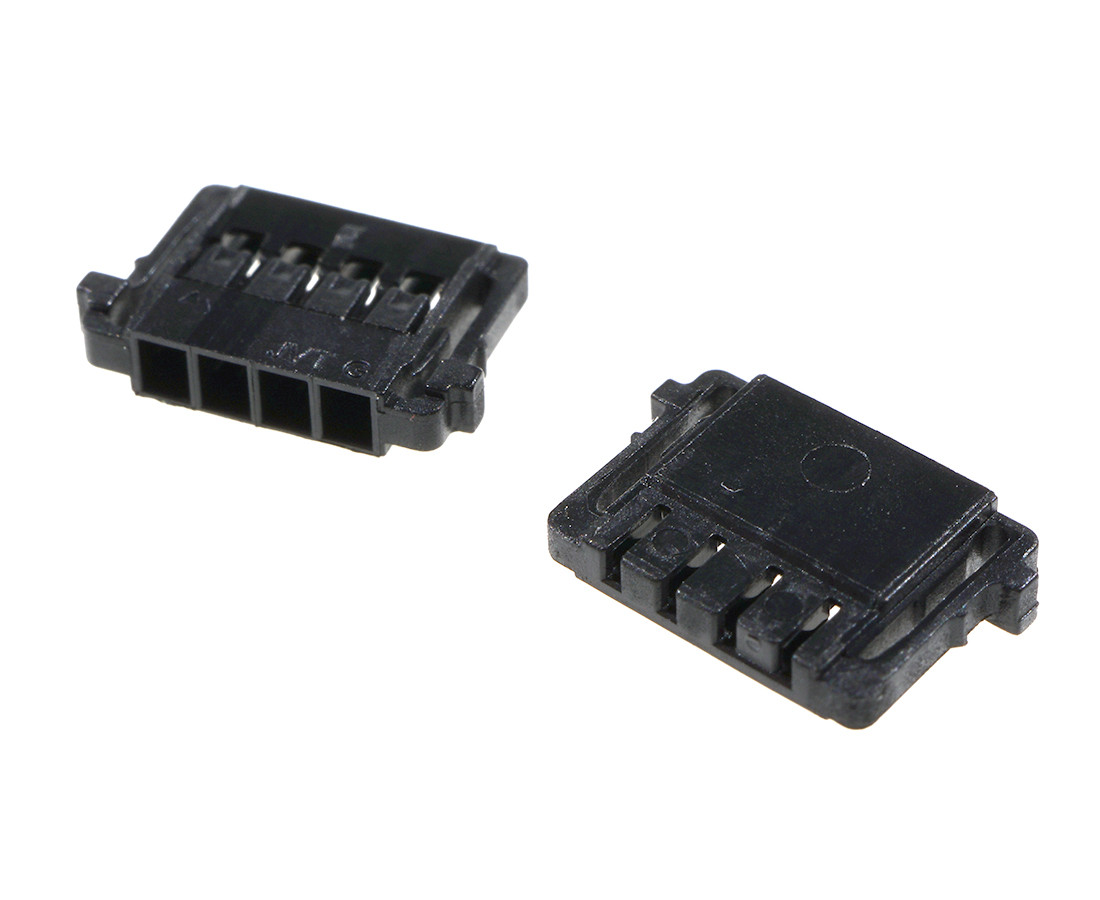

JVT1505HN0-04BK JVT Cable connector

Symbol Micros: Z K1505F-04p

337310

Z K1505F-04p

Contractor Symbol:

Case : Rys.K1505F-04p

Datasheet

Technical drawing Add to favourites

plug; female; 4pin; 150V; 2A; pitch: 1.5mm; oper. temp: -25°C~+85°C; material: Nylon 66 UL 94V-0; eqiv. 504051-0401

Parameters

Number of pins:	4
Spatial orientation:	Straight
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	150V
Connector:	Plug
Current:	2A

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1505HN0-04BK RoHS Case style: Rys.K1505F-04p Datasheet

In stock:

1978 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1998	0,0946	0,0529	0,0401	0,0363

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Spatial orientation:	Straight
Manufacturer:	JVT
Mounting:	Cables
Operating voltage:	150V
Connector:	Plug
Current:	2A
Type of connector:	Female
Terminal pitch [m]:	1,5mm
