W2400-03PRYTW0R HSM Cable connector

Symbol Micros: Z K2400-03r

16693

Z K2400-03r

Contractor Symbol:

Case : Rys.K2400-03r

Datasheet

Technical drawing Add to favourites

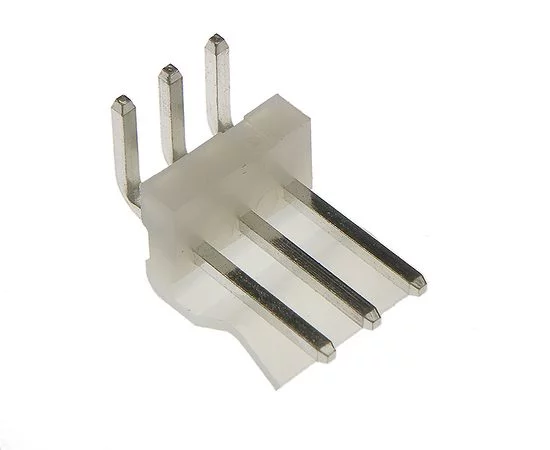

male socket; angled; PCB; 3 pin; pitch 3,96mm; tinned; white colour eqiv.: PWL03R

Parameters

Number of pins:	3
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [m]:	3,96mm

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.K2400-03r

In stock:

940 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,1934	0,0968	0,0576	0,0478	0,0430

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	3
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
Terminal pitch [m]:	3,96mm
