W2400-03PSYTW0R HSM Cable connector

Symbol Micros: Z K2400-03s

10506

Z K2400-03s

Contractor Symbol:

Case : Rys.K2400-03s

Datasheet

Technical drawing Add to favourites

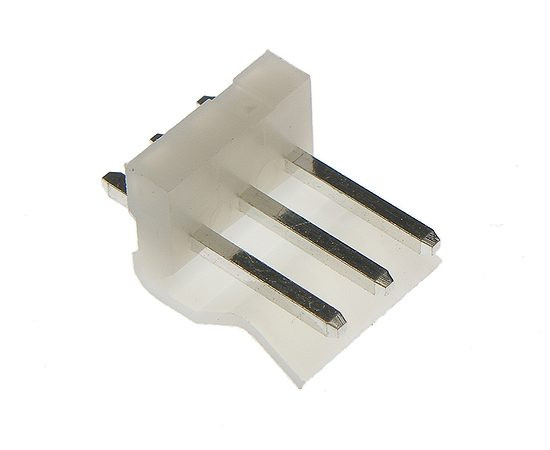

male socket; straigh; PCB; 3 pin; pitch 3,96mm; tinned; white colour eqiv.: PWL03S

Parameters

Number of pins:	3
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-09-30

Quantity of pcs.: 19700

• Parameters

Number of pins:	3
Connector:	Socket
Current:	5A
Type of connector:	Male
Operating voltage:	250V
