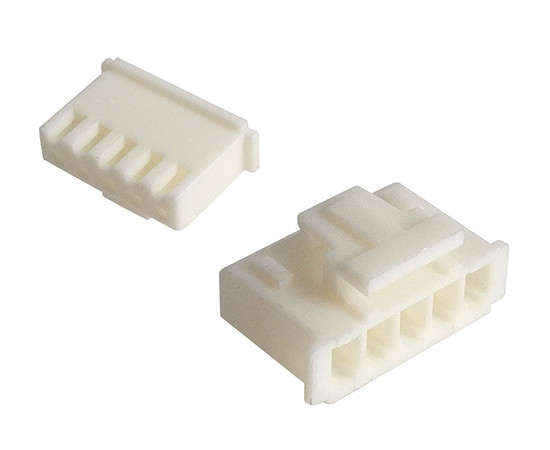

JVT2501HN0-05 JVT Cable connector

Symbol Micros: Z K2501F-05p

104706

Z K2501F-05p

Contractor Symbol:

Case : Rys.K2501F-05p

Datasheet

Technical drawing Add to favourites

plug; female; 5pin; 250V; 3A; pitch: 2,5mm; straight; operating temp: -25°C~+85°C; material: PA66 UL94V-0; mates with Z K2502

Parameters

Number of pins:	5
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Female

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.K2501F-05p Datasheet

In stock:

700 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0675	0,0260	0,0148	0,0108	0,0097

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	5
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Female
