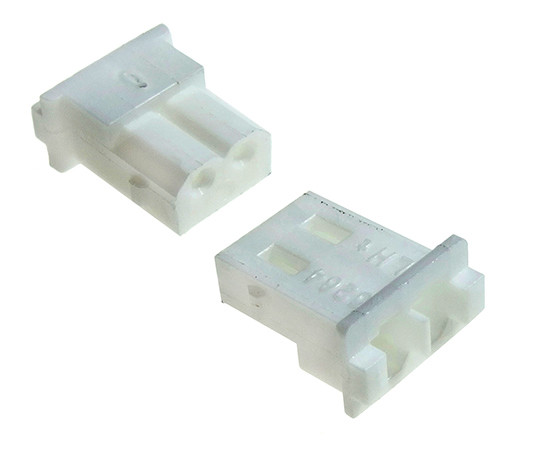

SNA2505-H02 CONNECTAR Cable connector

Symbol Micros: Z K2505F-02p

219086

Z K2505F-02p

Contractor Symbol:

Case : Rys.K2505F-02p

Datasheet

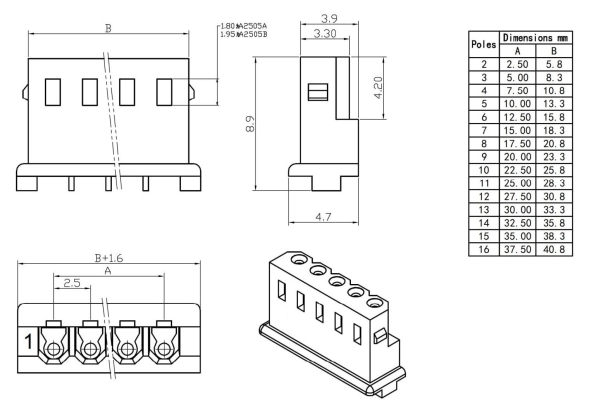

Technical drawing Add to favourites

plug; female; type: SPOX; 2pin; 250V; 3A; pitch: 2,5mm; wire range: 28-22 AWG; temp.pracy: -25°C~+85°C; mates with Z K2505M, eqiv. 50-37-5023

Parameters

Number of pins:	2
Manufacturer:	CONNECTAR
Mounting:	Cables
Spatial orientation:	Straight
Connector:	Plug
Current:	3A
Operating voltage:	250V

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-01

Quantity of pcs.: 19000

• Parameters

Number of pins:	2
Manufacturer:	CONNECTAR
Mounting:	Cables
Spatial orientation:	Straight
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Female
Terminal pitch [m]:	2,5mm
