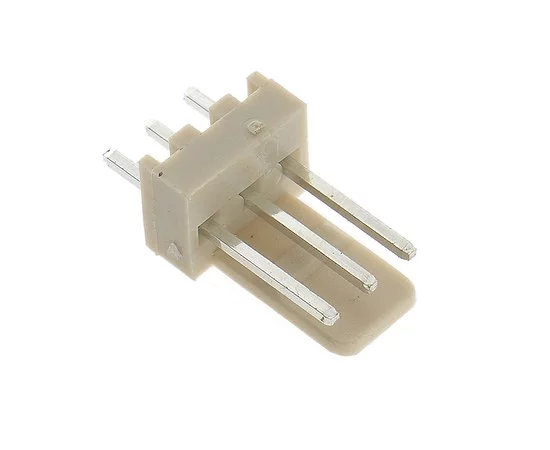

SNA2543-WV03 CONNECTAR Cable connector

Symbol Micros: Z K40303ts

6335

Z K40303ts

Contractor Symbol:

Case : Rys.K40303ts

Datasheet

Technical drawing Add to favourites

socket; male; straight; 3pin; 250V; 3A; pitch: 2,54mm; wire range: 28-22 AWG; operating temp: -25°C~+85°C; material: PA66; UL94V-0; eqiv. WF-03S; NS25-W3P

Parameters

Number of pins:	3
Operating voltage:	250V
Current:	3A
Manufacturer:	CONNECTAR
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: SNA2543-WV03 (Beige) LHE RoHS Case style: Rys.K40303ts Datasheet

In stock:

65440 pcs.

Quantity of pcs.	10+	50+	300+	2000+	10000+
Net price (EUR)	0,0652	0,0250	0,0130	0,0100	0,0093

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 10)

- +

Manufacturer:: JVT Manufacturer part number: JVT8001WN2-03SN-D RoHS Case style: Rys.K40303ts Datasheet

In stock:

310 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0652	0,0250	0,0145	0,0106	0,0095

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/40000 Quantity (multiple: 10)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-10

Quantity of pcs.: 80000

• Parameters

Number of pins:	3
Operating voltage:	250V
Current:	3A
Manufacturer:	CONNECTAR
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	2,54mm
