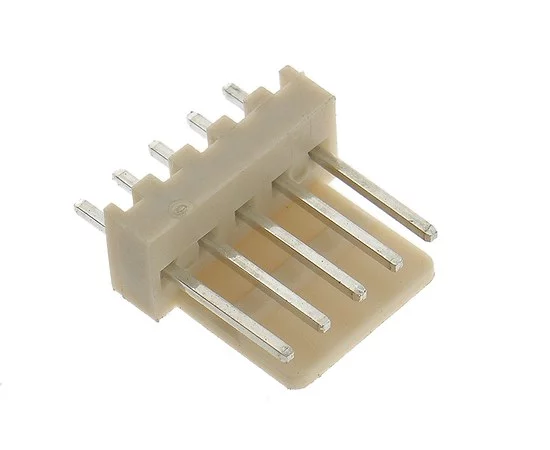

SNA2543-WV05 CONNECTAR Cable connector

Symbol Micros: Z K40305ts

12551

Z K40305ts

Contractor Symbol:

Case : Rys.K40305ts

Datasheet

Technical drawing Technical drawing Add to favourites

socket; male; straight; 5pin; 250V; 3A; pitch: 2,5mm; wire range: 28-22 AWG; operating temp: -25°C~+85°C; material: PA66; UL94V-0; eqiv. WF-05S; NS25-W5P

Parameters

Number of pins:	5
Operating voltage:	250V
Current:	3A
Manufacturer:	CONNECTAR
Connector:	Socket
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT8001WN2-05SNBE-D-B RoHS Case style: Rys.K40305ts Datasheet

In stock:

14300 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1399	0,0558	0,0325	0,0271	0,0254

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/20000 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number: SNA2543-WV05 (Beige) LHE RoHS Case style: Rys.K40305ts Datasheet

In stock:

22793 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1399	0,0663	0,0371	0,0280	0,0254

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	5
Operating voltage:	250V
Current:	3A
Manufacturer:	CONNECTAR
Connector:	Socket
Type of connector:	Male
