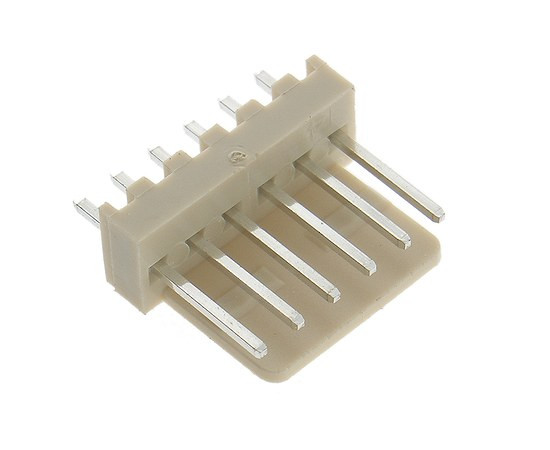

JVT8001WN2-06SNBE-D-B JVT Cable connector

Symbol Micros: Z K40306ts

6337

Z K40306ts

Contractor Symbol:

Case : Rys.K40306ts

Datasheet

Technical drawing Add to favourites

socket; male; straight; 6pin; 250V; 3A; pitch: 2,54mm; wire range: 28-22 AWG; operating temp: -25°C~+85°C; material: Nylon66; UL94V-0; eqiv. WF-06S; NS25-W6P

Parameters

Number of pins:	6
Manufacturer:	JVT
Operating voltage:	250V
Current:	3A
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight

All parameters

Manufacturer:: JVT Manufacturer part number: JVT8001WN0-06SNBE-D-B RoHS Case style: Rys.K40306ts Datasheet

In stock:

1000 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1433	0,0573	0,0333	0,0278	0,0260

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number: JVT8001WN2-06SN-D RoHS Case style: Rys.K40306ts Datasheet

In stock:

1215 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1433	0,0573	0,0333	0,0278	0,0260

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/20000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	6
Manufacturer:	JVT
Operating voltage:	250V
Current:	3A
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [mm]:	2,54mm
