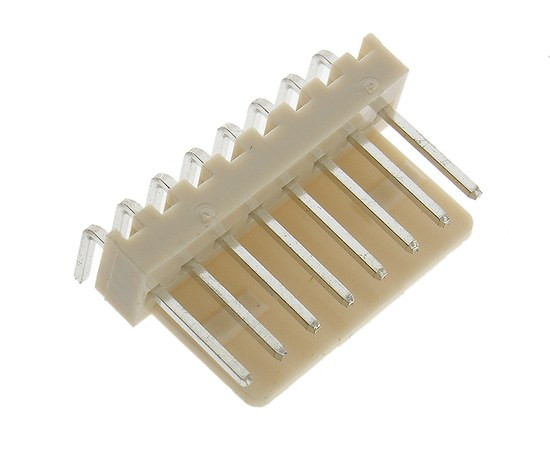

W2600-08PRYTC0R HSM Cable connector

Symbol Micros: Z K40308tr

13726

Z K40308tr

Contractor Symbol:

Case : Rys.K40308tr

Datasheet

Technical drawing Add to favourites

socket; male; angled; 8pin; 250V; 3A; pitch: 2,54mm; wire range: 28-22 AWG; operating temp: -25°C~+85°C; material: PA66; UL94V-0; eqiv. WF-08R; NS25-W8K

Parameters

Number of pins:	8
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.K40308tr

In stock:

1742 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2089	0,0835	0,0485	0,0405	0,0380

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Type of connector:	Male
Terminal pitch [m]:	2,54mm
