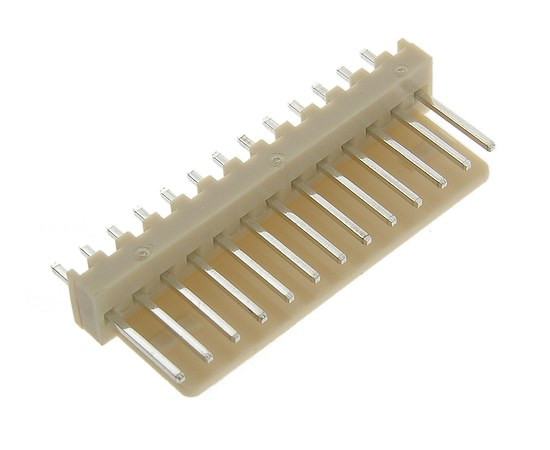

W2600-08PSYTW0R HSM Cable connector

Symbol Micros: Z K40313ts

17665

Z K40313ts

Contractor Symbol:

Case : Rys.K40313ts

Datasheet

Technical drawing Add to favourites

socket; male; straight; 8pin; 250V; 3A; pitch: 2,54mm; wire range: 28-22 AWG; operating temp: -25°C~+85°C; material: Nylon66; UL94V-2; eqiv. WF-13S

Parameters

Number of pins:	13
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.K40313ts

In stock:

75 pcs.

Quantity of pcs.	5+	10+	30+	100+	475+
Net price (EUR)	0,2052	0,1405	0,0855	0,0588	0,0456

Add to comparison tool Add inquiry (RFQ)

Packaging:
475 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.K40313ts

In stock:

450 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2168	0,1096	0,0661	0,0522	0,0482

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	13
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	2,54mm
