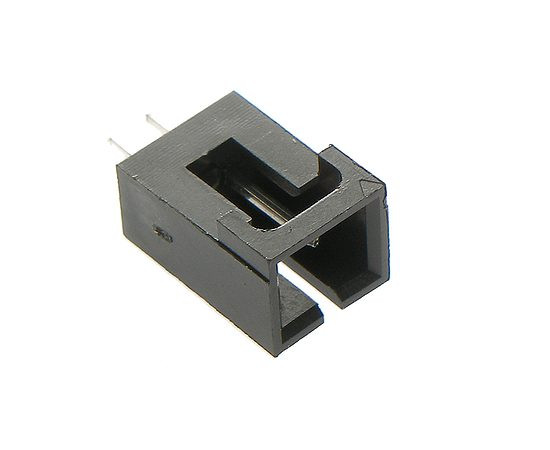

W7166-02PSTB00R HSM Cable connector

Symbol Micros: Z K7166-02s

15997

Z K7166-02s

Contractor Symbol:

Case : Rys.K7166-02s

Datasheet

Technical drawing Add to favourites

male straight CD audio for PCB 2 pins, p. 2,54mm, tinned, black colour eqiv. WZ-02S

Parameters

Number of pins:	2
Operating voltage:	250V
Current:	2,5A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM. Manufacturer part number:   Case style: Rys.K7166-02s

In stock:

1300 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1509	0,0604	0,0351	0,0293	0,0274

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.K7166-02s

In stock:

159 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1509	0,0604	0,0351	0,0293	0,0274

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	2
Operating voltage:	250V
Current:	2,5A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [m]:	2,54mm
