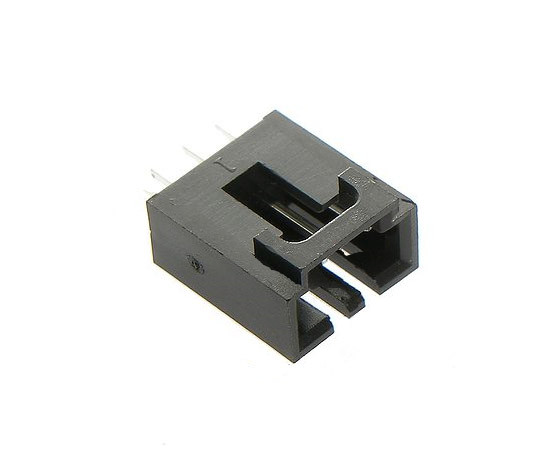

W7166-03PSTB00R HSM Cable connector

Symbol Micros: Z K7166-03s

27535

Z K7166-03s

Contractor Symbol:

Case : Rys.K7166-03s

Datasheet

Technical drawing Add to favourites

male straight CD audio for PCB 3 pins, p. 2,54mm, tinned, black colour eqiv. WZ-03S

Parameters

Number of pins:	3
Operating voltage:	250V
Current:	2,5A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM. Manufacturer part number:   Case style: Rys.K7166-03s

In stock:

1000 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1826	0,0730	0,0423	0,0355	0,0332

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-10-07

Quantity of pcs.: 2000

• Parameters

Number of pins:	3
Operating voltage:	250V
Current:	2,5A
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Male
Terminal pitch [mm]:	2,54mm
