W7166-10PSTB00R HSM Cable connector

Symbol Micros: Z K7166-10s

35362

Z K7166-10s

Contractor Symbol:

Case : Rys.K7166-10s

Datasheet

Technical drawing Add to favourites

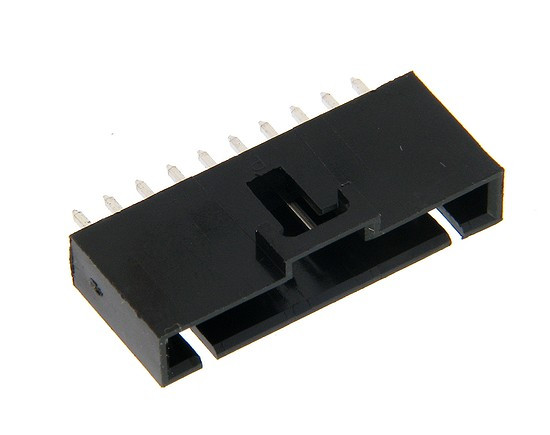

male straight CD audio for PCB 10 pins, p. 2,54mm, tinned, black colour eqiv. WZ-10S

Parameters

Number of pins:	10
Operating voltage:	250V
Current:	2,5A
Manufacturer:	HSM
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: HSM. Manufacturer part number: W7166-10PSTBOOR RoHS Case style: Rys.K7166-10s

In stock:

700 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,2810	0,1503	0,1171	0,1058	0,1023

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W7166-10PSTBOOR RoHS Case style: Rys.K7166-10s

In stock:

30 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,2810	0,1503	0,1171	0,1058	0,1023

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-15

Quantity of pcs.: 1000

• Parameters

Number of pins:	10
Operating voltage:	250V
Current:	2,5A
Manufacturer:	HSM
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,54mm
