H4000-04PDNB00R HSM Cable connector

Symbol Micros: Z KBLd04

15139

Z KBLd04

Contractor Symbol:

Case : Rys.KBLd04

Datasheet

Technical drawing Add to favourites

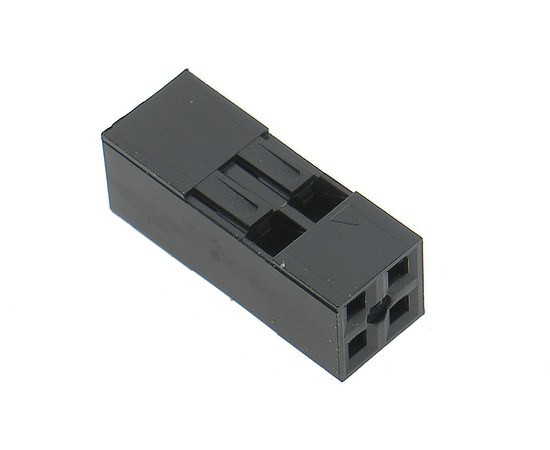

dual row, housing 2x2 pins, black colour, mates with Z L2x eqiv. BLD-04

Parameters

Number of pins:	4
Manufacturer:	HSM
Operating voltage:	250V
Current:	3A
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM. Manufacturer part number:   Case style: Rys.KBLd04

In stock:

5000 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0693	0,0266	0,0152	0,0111	0,0099

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 10)

- +

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.KBLd04

In stock:

240 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,0834	0,0329	0,0194	0,0143	0,0128

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/10000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	4
Manufacturer:	HSM
Operating voltage:	250V
Current:	3A
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	2,54mm
