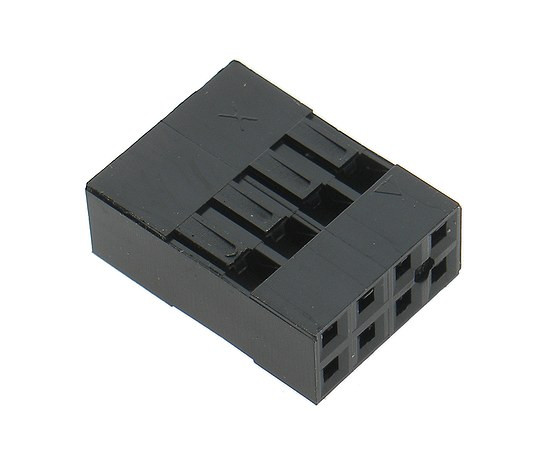

H4000-08PDNB00R HSM Cable connector

Symbol Micros: Z KBLd08

14820

Z KBLd08

Contractor Symbol:

Case : Rys.KBLd08

Datasheet

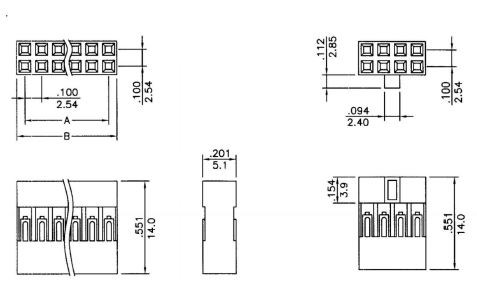

Technical drawing Add to favourites

dual row, housing 2x2 pins, black colour, mates with Z L2x eqiv. BLD-04

Parameters

Number of pins:	8
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM. Manufacturer part number:   Case style: Rys.KBLd08

In stock:

5000 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1311	0,0502	0,0283	0,0233	0,0218

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.KBLd08

In stock:

1570 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1332	0,0532	0,0309	0,0258	0,0242

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	8
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
