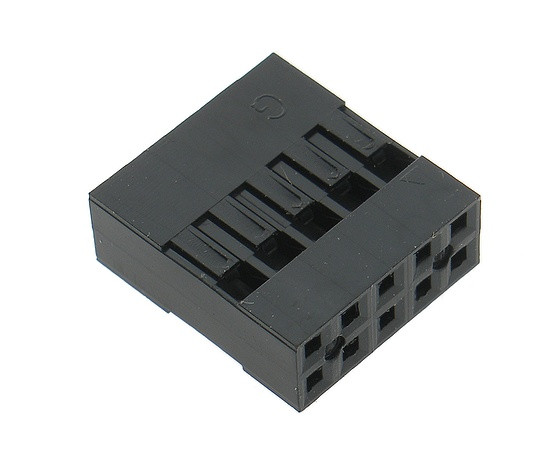

H4000-10PDNB00R HSM Cable connector

Symbol Micros: Z KBLd10

13913

Z KBLd10

Contractor Symbol:

Case : Rys.KBLd10

Datasheet

Technical drawing Add to favourites

dual row, housing 2x2 pins, black colour, mates with Z L2x eqiv. BLD-04

Parameters

Number of pins:	10
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM. Manufacturer part number:   Case style: Rys.KBLd10

In stock:

500 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,1712	0,0684	0,0399	0,0332	0,0311

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-11-20

Quantity of pcs.: 2000

• Parameters

Number of pins:	10
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
