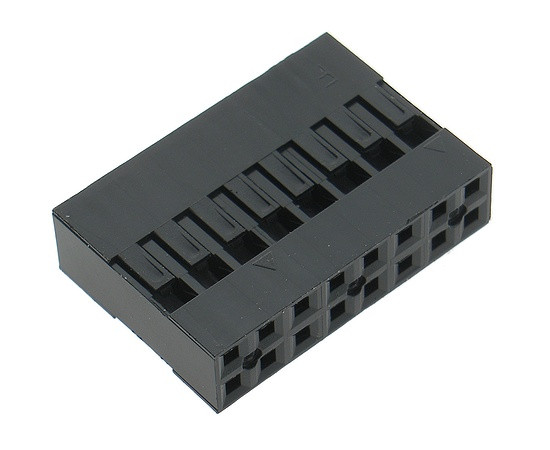

H4000-16PDNB00R HSM Cable connector

Symbol Micros: Z KBLd16

16701

Z KBLd16

Contractor Symbol:

Case : Rys.KBLd16

Datasheet

Technical drawing Add to favourites

dual row, housing 2x2 pins, black colour, mates with Z L2x eqiv. BLD-04

Parameters

Number of pins:	16
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.KBLd16

In stock:

1000 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2088	0,1143	0,0749	0,0646	0,0596

Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	16
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
