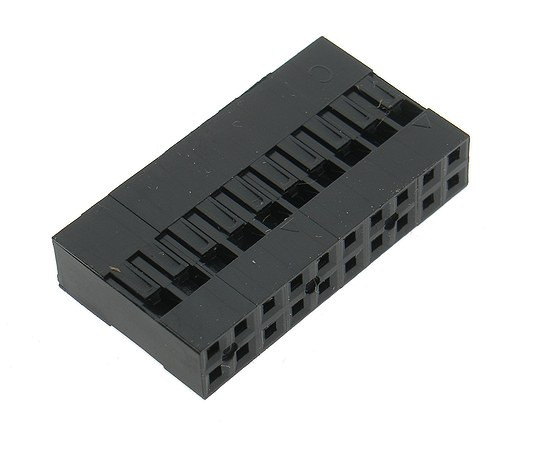

H4000-20PDNB00R HSM Cable connector

Symbol Micros: Z KBLd20

19965

Z KBLd20

Contractor Symbol:

Case : Rys.KBLd20

Datasheet

Technical drawing Add to favourites

dual row, housing 2x2 pins, black colour, mates with Z L2x eqiv. BLD-04

Parameters

Number of pins:	20
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.KBLd20

In stock:

635 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2996	0,1649	0,1092	0,0908	0,0854

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	20
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
