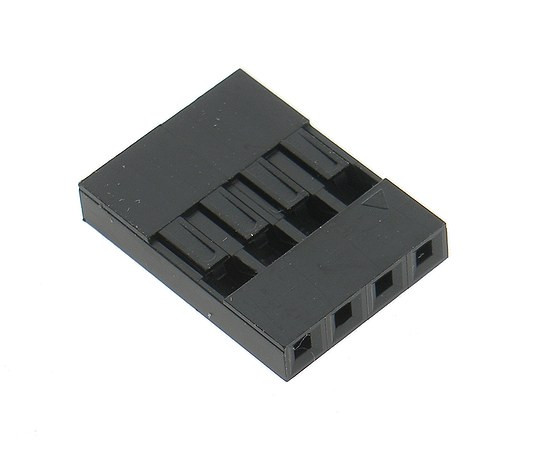

H4000-04PSNB00R HSM Cable connector

Symbol Micros: Z KBLs04

14218

Z KBLs04

Contractor Symbol:

Case : Rys.KBLs04

Datasheet

Technical drawing Add to favourites

single row, housing 1x4 pins, black colour, mates with Z L1x eqiv. BLS-04

Parameters

Number of pins:	4
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	4
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
