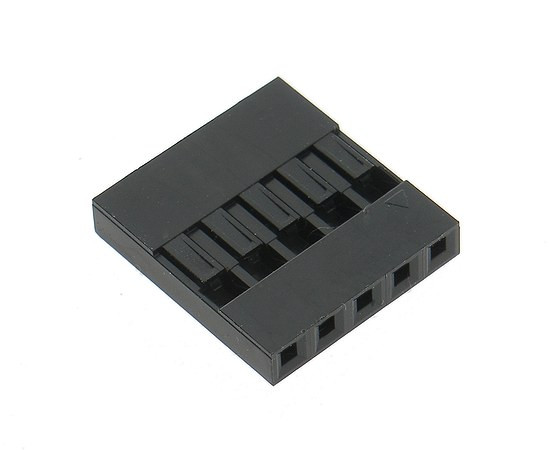

H4000-05PSNB00R HSM Cable connector

Symbol Micros: Z KBLs05

13549

Z KBLs05

Contractor Symbol:

Case : Rys.KBLs05

Datasheet

Technical drawing Add to favourites

single row, housing 1x5 pins, black colour, mates with Z L1x eqiv. BLS-05

Parameters

Number of pins:	5
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.KBLs05

In stock:

3232 pcs.

Quantity of pcs.	10+	50+	200+	1000+	5000+
Net price (EUR)	0,1013	0,0403	0,0236	0,0174	0,0156

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/5000 Quantity (multiple: 10)

- +

• Parameters

Number of pins:	5
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
