H4000-16PSNB00R HSM Cable connector

Symbol Micros: Z KBLs16

78952

Z KBLs16

Contractor Symbol:

Case : Rys.KBLs16

Datasheet

Technical drawing Add to favourites

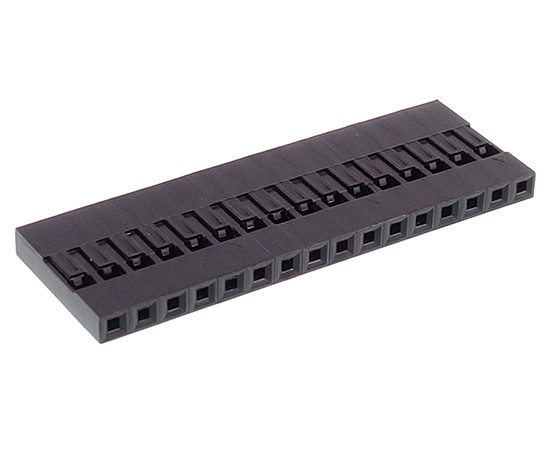

single row, housing 1x16 pins, black colour, mates with Z L1x eqiv. BLS-16

Parameters

Number of pins:	16
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight

All parameters

Manufacturer:: HSM Manufacturer part number:   Case style: Rys.KBLs16

In stock:

2810 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2898	0,1593	0,1053	0,0877	0,0825

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	16
Operating voltage:	250V
Current:	3A
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,54mm
