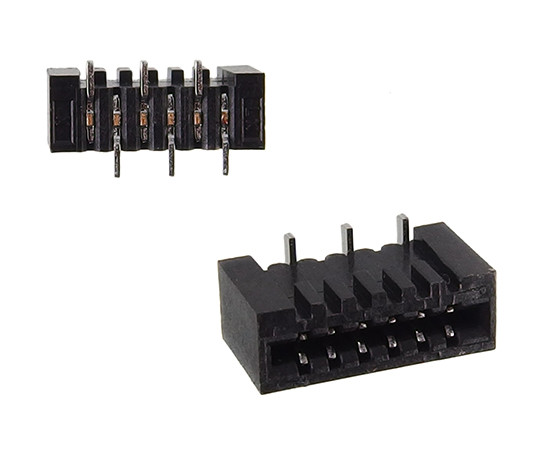

DS1020-05-06BT1 CONNFLY FFC Connector

Symbol Micros: Z KCD06T

87265

Z KCD06T

Contractor Symbol:

Case : rys.KCD06T

Datasheet

Technical drawing Add to favourites

NON-ZIF; vertical; 6pin; pitch 1mm; SMD; 100V; 1A contact material: copper; tinned

Parameters

Number of pins:	6
Mounting:	SMD
Spatial orientation:	Vertical
Terminal pitch [m]:	1,0mm
Connector:	Socket

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1020-05-06BT1 RoHS Case style: rys.KCD06T

In stock:

123 pcs.

Quantity of pcs.	5+	20+	72+	196+	936+
Net price (EUR)	0,3101	0,1690	0,1179	0,1001	0,0883

Add to comparison tool Add inquiry (RFQ)

Packaging:
72/196 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	6
Mounting:	SMD
Spatial orientation:	Vertical
Terminal pitch [m]:	1,0mm
Connector:	Socket
