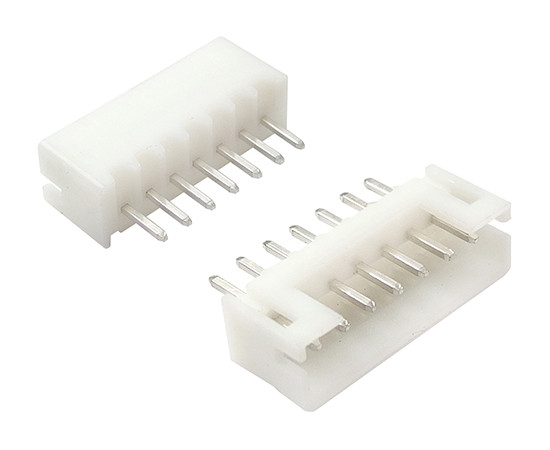

DS1066-7MVW6X CONNFLY Cable connector

Symbol Micros: Z KNXw07p

102448

Z KNXw07p

Contractor Symbol:

Case : Rys.KNXw07p

Datasheet

Technical drawing Add to favourites

socket; male; straight; THT; 7pin; 100V; 2A; pitch 2,0mm; white color; tinned contact; eqiv. NXW-07, WS-07S

Parameters

Number of pins:	7
Manufacturer:	CONNFLY
Current:	2A
Operating voltage:	100V
Spatial orientation:	Straight
Mounting:	THT
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	7
Manufacturer:	CONNFLY
Current:	2A
Operating voltage:	100V
Spatial orientation:	Straight
Mounting:	THT
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
