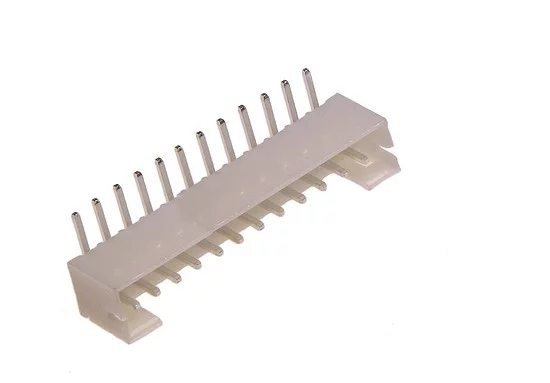

DS1066-12MRW6 CONNFLY Cable connector

Symbol Micros: Z KNXw12k

25948

Z KNXw12k

Contractor Symbol:

Case : Rys.KNXw12k

Datasheet

Technical drawing Add to favourites

socket; male; angled; THT; 12pin; 100V; 2A; pitch 2,0mm; white color; tinned contact; eqiv. WS-12R, NXW-12K

Parameters

Number of pins:	12
Manufacturer:	CONNFLY
Current:	1A
Operating voltage:	250V
Spatial orientation:	Angled
Mounting:	THT
Connector:	Socket

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	12
Manufacturer:	CONNFLY
Current:	1A
Operating voltage:	250V
Spatial orientation:	Angled
Mounting:	THT
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
