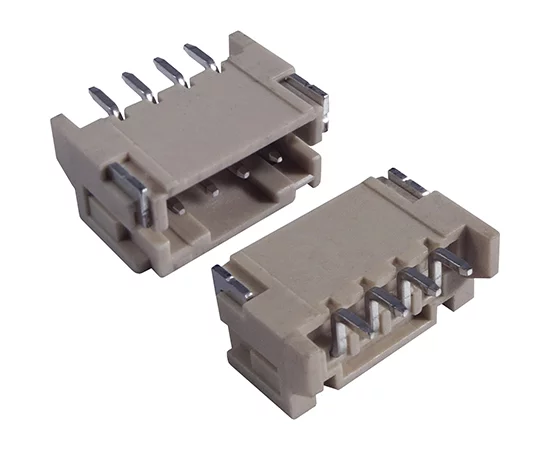

JVT1125WLP-04SNR-S JVT Cable connector

Symbol Micros: Z KNXws04k

100367

Z KNXws04k

Contractor Symbol:

Case : Rys.KNXws04k

Datasheet

Technical drawing Add to favourites

socket; male; horizontal; SMT; 4pin; 2A; 100V; pitch 2,0mm; white color; tinned contact; eqiv. WS04DH; kind of package: reel 1000 pcs

Parameters

Number of pins:	4
Manufacturer:	JVT
Current:	2A
Operating voltage:	100V
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1125WLP-04SNR-S RoHS Case style: Rys.KNXws04k Datasheet

In stock:

7875 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2470	0,1348	0,0885	0,0762	0,0703

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: JVT Manufacturer part number: JVT1125W9T-04SNR-S RoHS Case style: Rys.KNXws04k Datasheet

In stock:

11000 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2470	0,1348	0,0885	0,0762	0,0703

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	4
Manufacturer:	JVT
Current:	2A
Operating voltage:	100V
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	2,0mm
