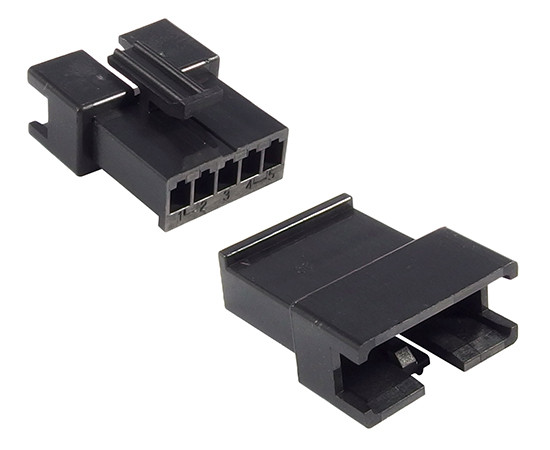

JVT6504HNO-05 JVT Cable connector

Symbol Micros: Z KSM05-JVT

117729

Z KSM05-JVT

Contractor Symbol:

Case : Rys.KSM05-JVT

Datasheet

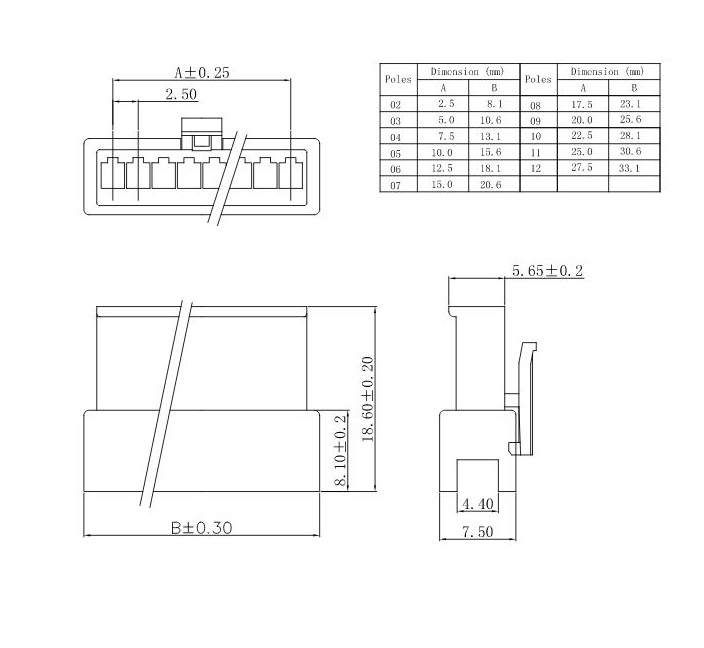

Technical drawing Add to favourites

plug; male; 5pin; 250V; 3A; pitch: 2,5mm; wire range: 22-28 AWG; operating temp: -25°C~+85°C; material: PA66 UL94V-0; mates with KSF

Parameters

Number of pins:	5
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	5
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Male
