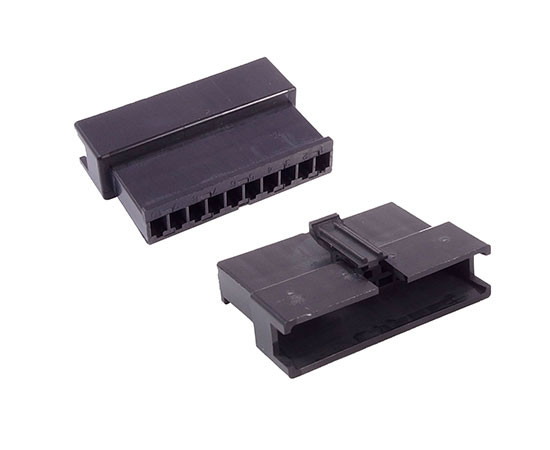

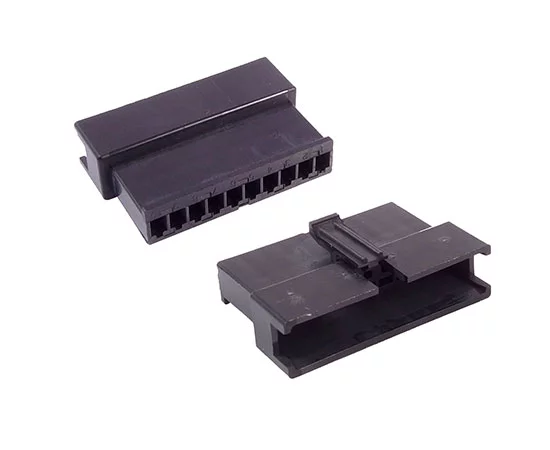

JVT6504HNO-10 JVT Cable connector

Symbol Micros: Z KSM10-JVT

117732

Z KSM10-JVT

Contractor Symbol:

Case : Rys.KSM10-JVT

Datasheet

Technical drawing Add to favourites

plug; male; 10pin; 250V; 3A; pitch: 2,5mm; wire range: 22-28 AWG; operating temp: -25°C~+85°C; material: PA66 UL94V-0; mates with KSF

Parameters

Number of pins:	10
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number:   Case style: Rys.KSM10-JVT Datasheet

In stock:

999 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,1669	0,0790	0,0442	0,0334	0,0303

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	10
Manufacturer:	JVT
Connector:	Plug
Current:	3A
Operating voltage:	250V
Type of connector:	Male
