H5050-16PDW000R HSM ATX Connector

Symbol Micros: Z KWF5050-16

19379

Z KWF5050-16

Contractor Symbol:

Case : Rys.H5050-16

Datasheet

Technical drawing Add to favourites

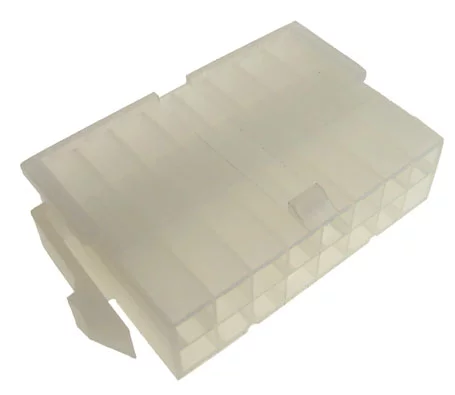

Plug; male; 16pin (2x8); straight; pitch: 4,2mm; for cable; with key; dual row; white color eqiv. MRX559-16, N42G-16/N

Equivalents

Parameters

Type of pin configuration:	2x8
Number of pins:	16
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: H5050-16PDW000R RoHS Case style: Rys.H5050-16

In stock:

1000 pcs.

Quantity of pcs.	3+	10+	50+	250+	1000+
Net price (EUR)	0,3531	0,2315	0,1658	0,1431	0,1358

Add to comparison tool Add inquiry (RFQ)

Packaging:
250/1000 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x8
Number of pins:	16
Manufacturer:	HSM
Connector:	Plug
Mounting:	Cables
Spatial orientation:	Straight
Type of connector:	Male

Equivalents

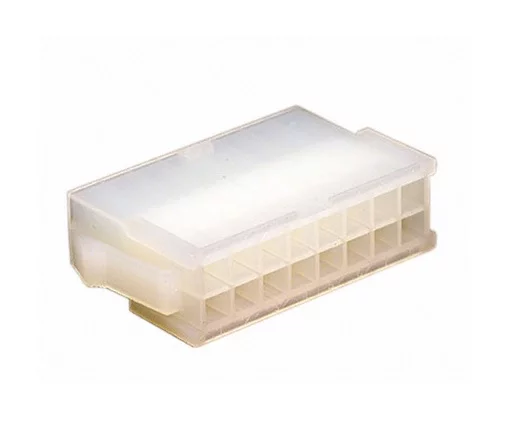

0039012161 MOLEX

Symbol Micros: 0039012161 MOLEX Info Add to favourites Equivalents

Add inquiry (RFQ)

Item available on request
