W4505-02PDRBTWR HSM ATX Connector

Symbol Micros: Z KWM4505-02r

15099

Z KWM4505-02r

Contractor Symbol:

Case : Rys.W4505-02R

Datasheet

Technical drawing Add to favourites

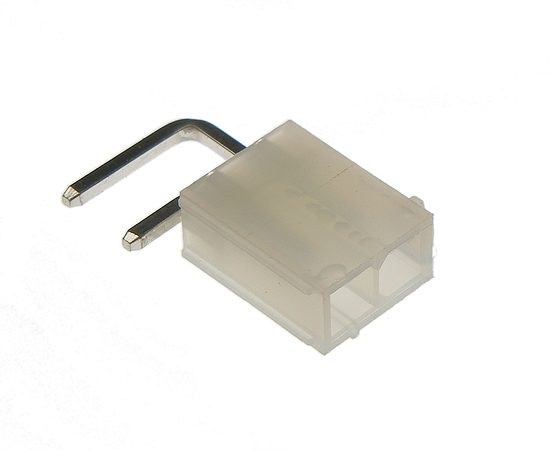

Socket; male; 2pin (2x1); angled; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color eqiv. MRX569-02

Parameters

Number of pins:	2
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Operating voltage:	250V
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: W4505-02PDRBTWR RoHS Case style: Rys.W4505-02R

In stock:

4000 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,4247	0,2333	0,1836	0,1701	0,1631

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: HSM Manufacturer part number: W4505-02PDRBTWR RoHS Case style: Rys.W4505-02R Datasheet

In stock:

500 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,4247	0,2333	0,1836	0,1701	0,1631

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000/4000 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	2
Manufacturer:	HSM
Connector:	Socket
Mounting:	THT
Spatial orientation:	Angled
Operating voltage:	250V
Type of connector:	Male
Terminal pitch [m]:	4,2mm
