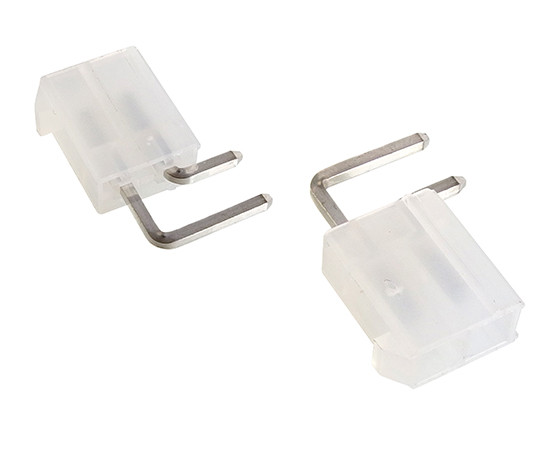

JVT1150WN2-2x1SNR-D JVT ATX Connector

Symbol Micros: Z KWM4505-02r-C

107020

Z KWM4505-02r-C

Contractor Symbol:

Case : Rys.KWM4505-02R-C

Datasheet

Technical drawing Add to favourites

Socket; male; 2pin (2x1); angled; pitch: 4,2x5,5mm; THT; with key; dual row; w/o mounting pegs; tined; white color

Parameters

Type of pin configuration:	2x1
Number of pins:	2
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male

All parameters

Manufacturer:: JVT Manufacturer part number: JVT1150WN2-2*01SNR-D RoHS Case style: Rys.KWM4505-02R-C Datasheet

In stock:

0 pcs.

Quantity of pcs.	5+	20+	100+	300+	1000+
Net price (EUR)	0,2069	0,1132	0,0742	0,0641	0,0591

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-15

Quantity of pcs.: 20000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-02-15

Quantity of pcs.: 10000

• Parameters

Type of pin configuration:	2x1
Number of pins:	2
Connector:	Socket
Manufacturer:	JVT
Spatial orientation:	Angled
Mounting:	THT
Type of connector:	Male
